Name: Passive Optical Network Power Meter for BPON/EPON/GPON, APC
SKU: 241064

Product Details ＋

Description

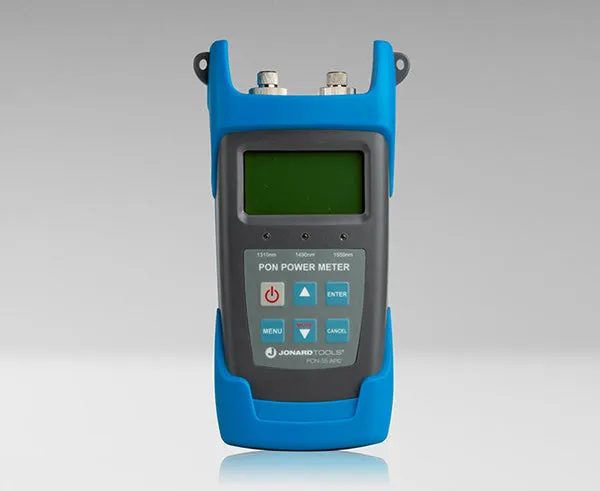

Passive Optical Network Power Meter for BPON/EPON/GPON, APC

Designed to perform live testing with OLT equipment, this PON Power Meter with APC connectors is perfect for use during FTTx/PON service turn-up or maintenance. It is able to simultaneously test and measure the signal power of voice, data, and video connections, and is essential for the construction and maintenance of PON systems.

Features

Includes APC/FC Adapters and APC/SC Adapters to directly connect to UPC/PC FC and SC fiber connectors
Analyzes voice, data, and video signals in BPON/EPON/GPON FTTx systems

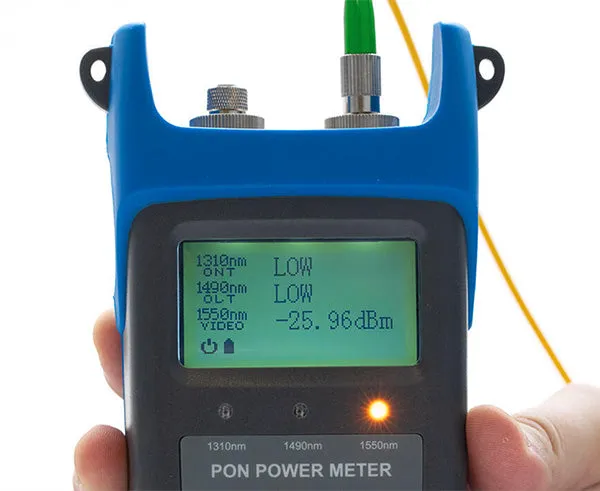

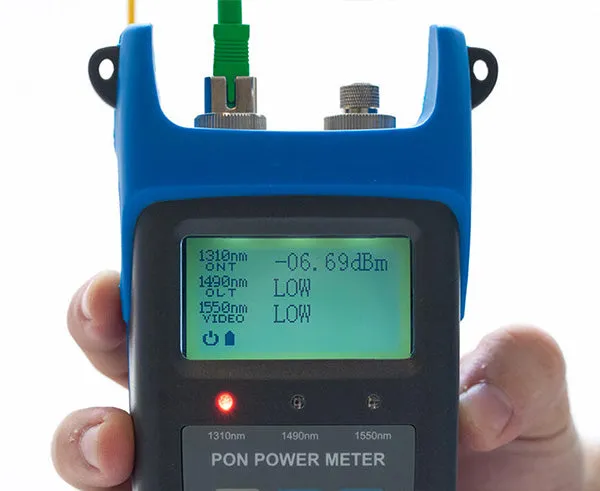

Concurrently measures 1310 nm Upstream Burst Signals and 1490/1550 nm Downstream Signal Measurements anywhere in the network
Three pass, warning, and fail LED indicators to allow you to quickly assess your network's power level
Supports 1310 nm Upstream Burst Signal and 1490/1550 nm Downstream Signal Measurements
USB port allows quick transfer of data, and up to 1,000 measurement items can be saved at once
Optional 10 minute auto-off can be activated or deactivated

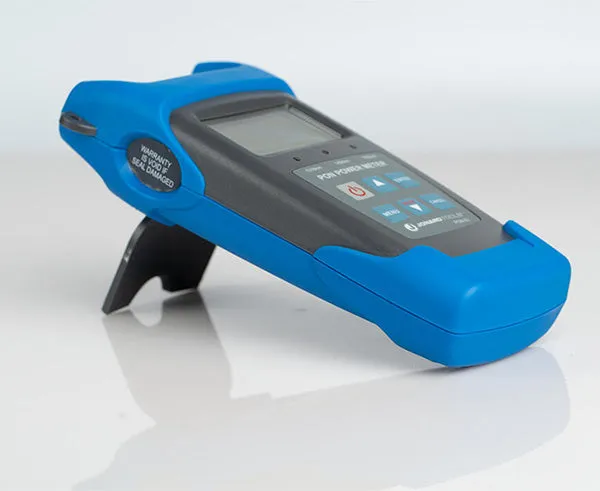

Shatter-resistant sleeve protects it from accidental falls or other damage
Included software allows you to set the thresholds, transfer data, and calibrate the wavelength from your PC

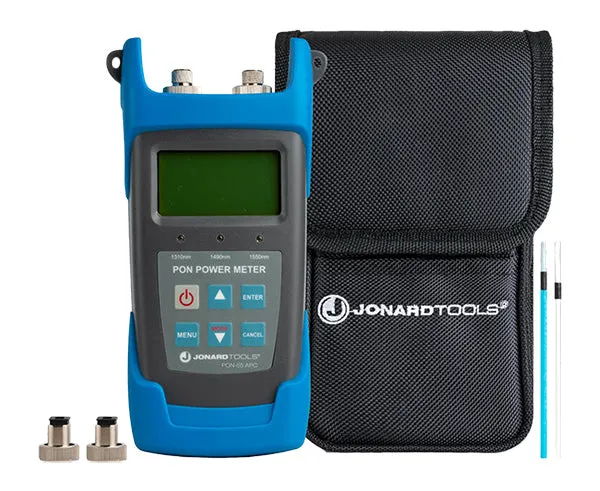

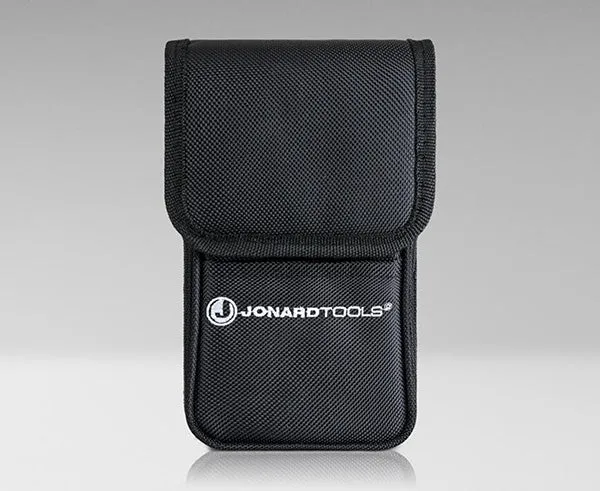

Includes: PON Power Meter, (2) APC/FC Adapters, (2) APC/SC Adapters, Carrying Case, Instruction Manual, Mini USB Cable, and (3) AA Batteries

Specifications

Network Types	BPON/EPON/GPON

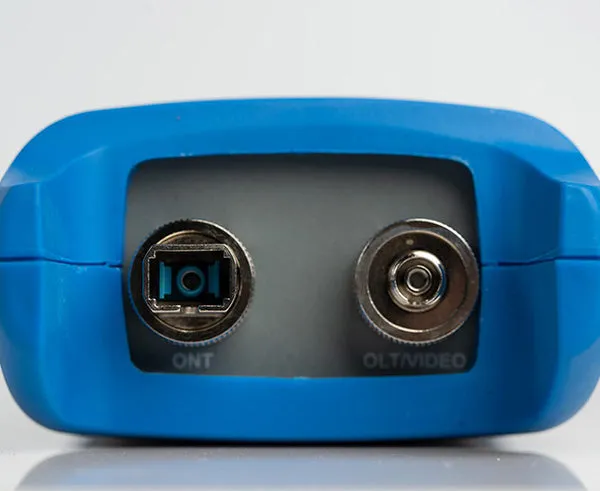

Connector Types	FC/SC (APC)
Wavelengths	1310 nm, 1490 nm, 1550 nm
Measurement Range	-35 dBm～ 10 dBm @ 1310/1490 nm, -35dBm～ 10dBm @ 1550 nm
Max Output Power	15 dBm @ 1310/1490/1550 nm
Detector Type	InGaAs
Connatural Uncertainty (dB)	±0.5 dB
Linearity (dB)	±0.1 dB
Batteries	(3) 1.5V AA
Battery Life	90 Hours
Operation Temperature	-10℃～60℃
Dimensions	6.25" x 9" x 2.8" (15.88 cm x 22.86 cm x 7.11 cm)
Tool Weight	0.93 lb (0.423 kg)
Weight	0 lb (0 g)
UPC #	810053350348
