Product Details



Features:-

>Premium ES9038Pro flagship DAC chipset.

>Amplification circuit: ADA4896x2 MUSE8920 OPA2211 BUF634.

>Powerful output thrust.

>Clean and detailed sound presentation.

>True Hi-Res decoding(PCM 32Bit/768kHz, DSD512, 16x MQA).

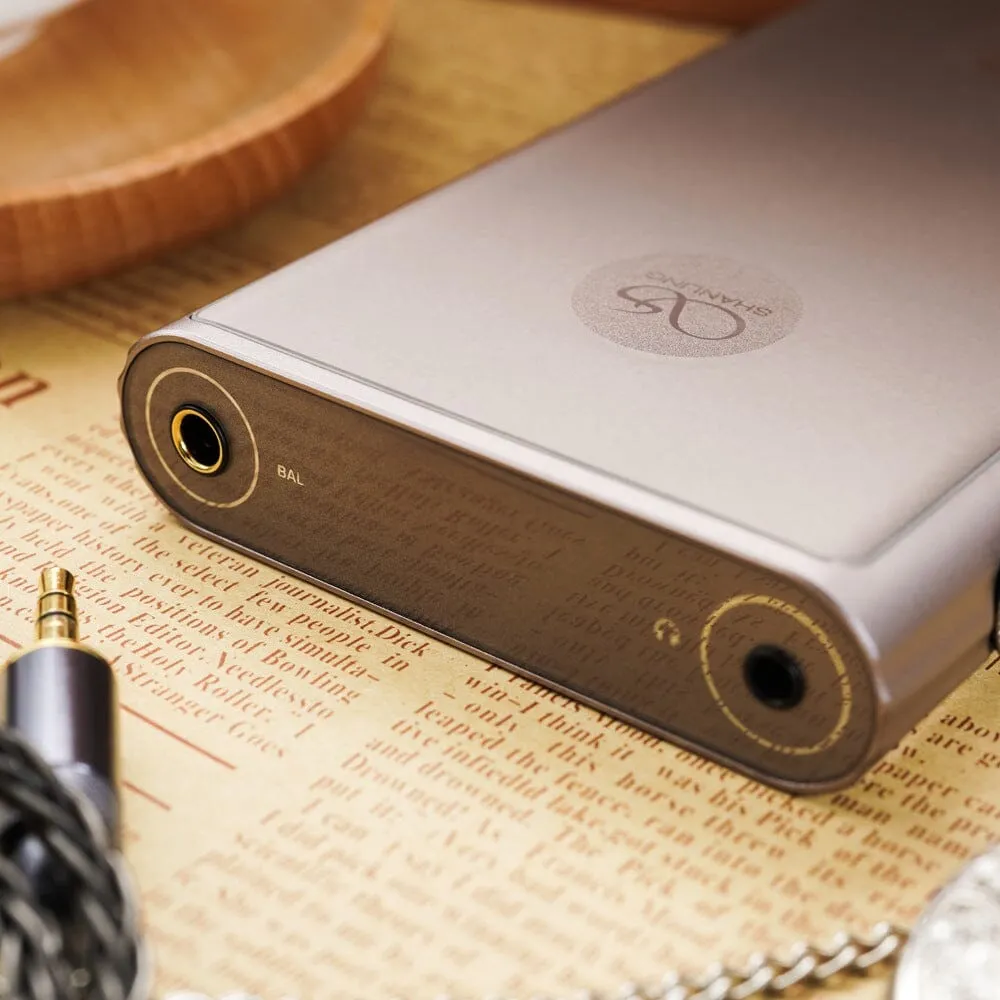

>Dual headphone outputs(3.5mm SE 4.4mm Bal).

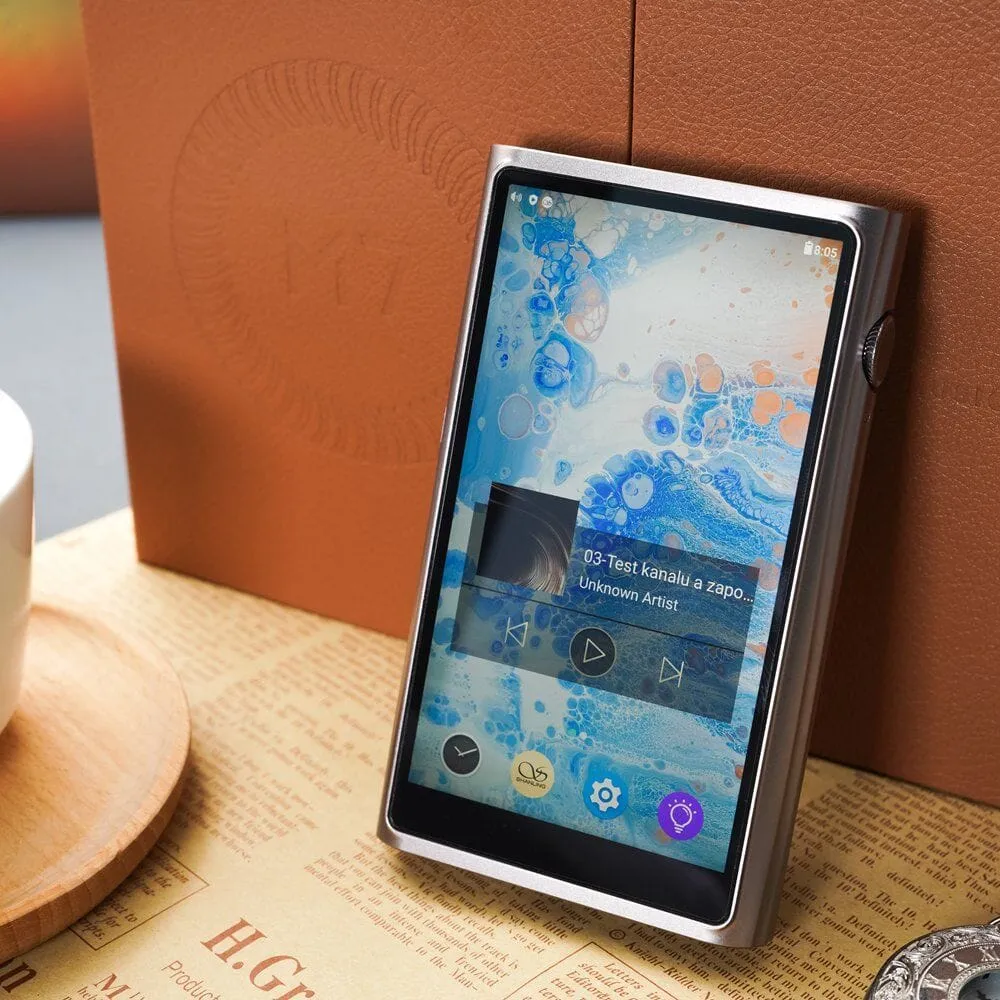

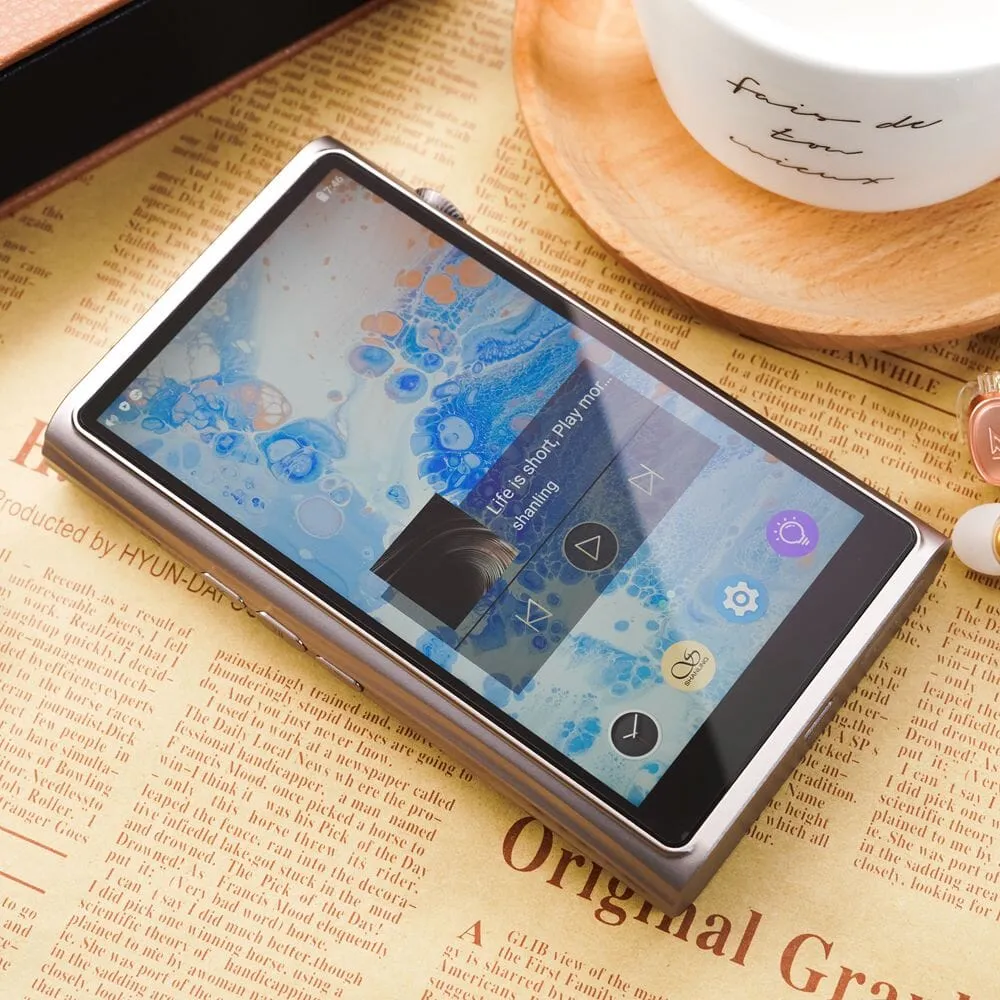

>5” full-HD 1080P display.

>High-Res Bluetooth V5.0 connectivity(LDAC LHDC APTX HD and more).

>Open Android 10 OS.

>Multiple application support.

>Lightning fast performance with powerful SoC chip.

>Large 7000mAh battery.

>Battery Life: up to 10 hours in single-ended mode, up to 8.5 hours in balanced mode.

Output Parameters(3.5mm Single-Ended):-

>Output Power: Up to 406mW @ 32Ω.

>Frequency Response: 20Hz-40kHz.

>THD N: 0.0007%.

>Channel Separation: 75dB.

>Dynamic Range: 126dB.

>SNR: 126dB.

>Noise: >116dB.

>Output Impedance: <1Ω.

Output Parameters(4.4mm Bal):-

>Output Power: Up to 900mW @ 32Ω.

>Frequency Response: 20Hz-40kHz.

>THD N: 0.0007%.

>Channel Separation:115dB.

>Dynamic Range: 128dB.

>SNR: 128dB.

>Noise: >113dB.

>Output Impedance: <1Ω.

Following the footsteps of the ultimate flagship Shanling M9 Android Digital Audio Players, Shanling has now announced the latest Shanling M7 Music player. It adopts a flagship-grade ES9038Pro audio decoding chip along with an in-house developed amplification circuit for ultimate performance. Shanling has featured a powerful Snapdragon 665 SoC bringing the users an open Android 10 experience!!

Based On The Design Architecture Of Almighty Shanling M9:-

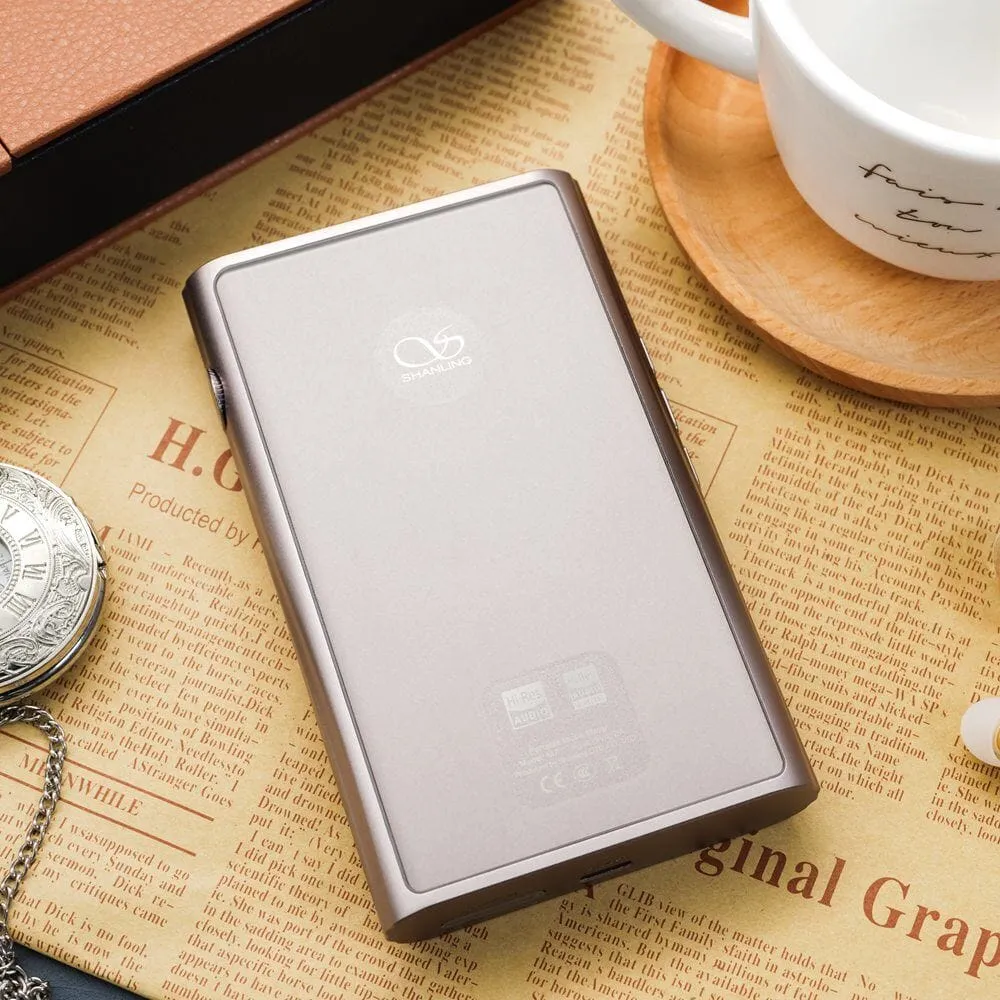

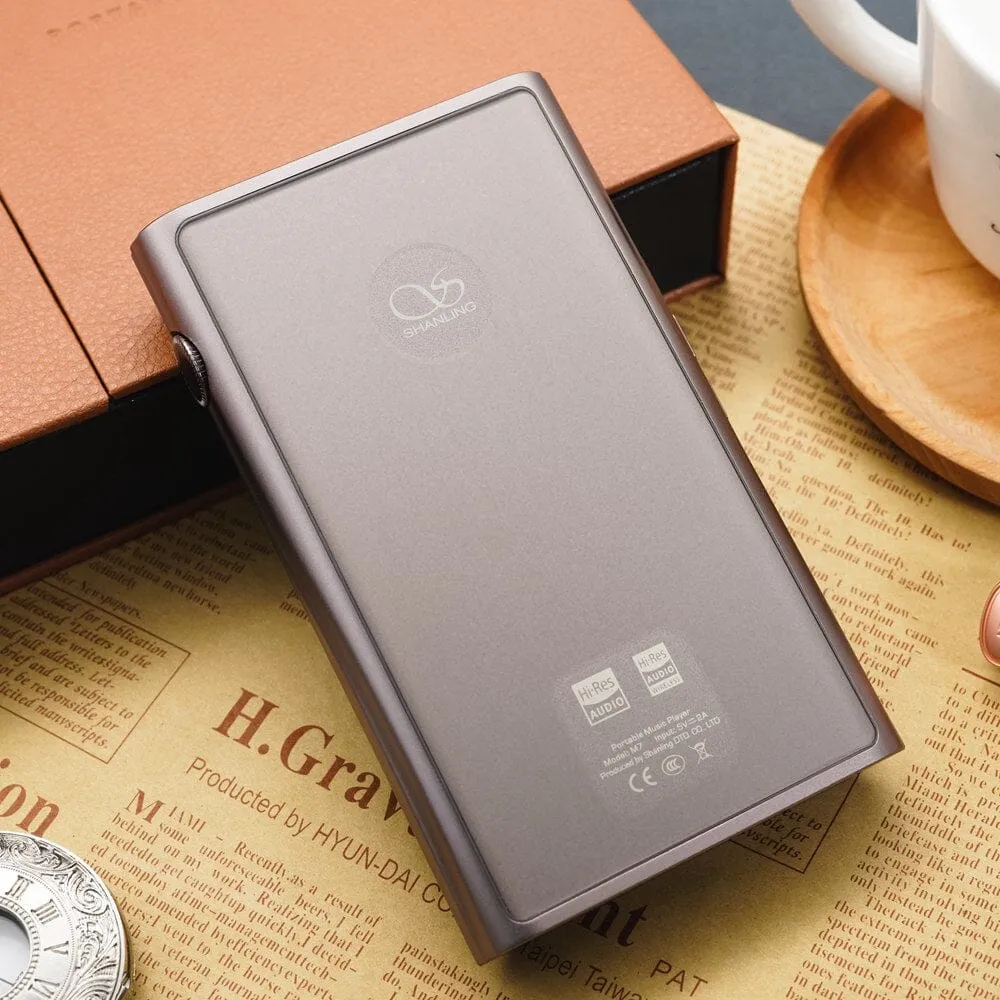

Shanling has designed the latest Shanling M7 with the same design and architecture as the ultimate flagship M9. Shanling has equipped it with a fast eight-core SoC chip, featuring a single-piece aluminum design, and a single-board integrated acoustic circuit from the M9. They have packed the M7 in a smaller and compact body in comparison to the M9.  At a far glance, The M7 looks like a younger sibling to the M9!!

Top-Quality Performance With Flagship Decoding Chip:-

Shanling has featured the flagship ES9038Pro Hi-Res decoding chip in the M7. The ES9038Pro is a 32-Bit 8-Channel DAC that produces a clean signal when decoding Hi-Res audio. With a capable USB receiver onboard, the M7 supports high-resolution 32-Bit/768kHz PCM and native DSD512 signals.

Full 16X Master Quality Support:-

Shanling has got years of expertise in designing HiFi audio gears. They have got their hands on designing some of the best DAC/AMPs and Audio Players in the market. The latest M7 has full 16x support for MQA(Master Quality Authenticated) files bringing us a true studio-quality performance right in our pocket.

Talk About Power, You Got The Best In Your Hands:-

With the help of a custom-designed amplification circuit, Shanling has equipped the M7 with powerful amplification circuitry. The player produces a powerful amplification with a noise-free clean background. It houses a 3.5mm SE and a 4.4mm Bal headphone output. The player has got powerful output ratings of up to 400mW & 900mW, more than enough to drive the most demanding IEMs with ease.

Ultra-Fast Performance With Upgraded SoC Chipset:-

Shanling M7 is equipped with the latest Snapdragon 665 chipset packing a super speed lag-free user interface. It has also allowed Shanling to upgrade the M7 to the latest Android 10 OS. The device is loaded with 6GB of RAM supporting multi-tasking and countless media applications from the Android Playstore.

Huge 7,000 mAh Battery:-

Shanling has featured a huge 7,000mAh battery on the M7. This battery also supports fast charging. With it and a high-power consuming chipset, the M7 achieves a battery life of up to 10 hours on single-ended and up to 8.5 hours on balanced mode.


Specification:
Dimensions: 129 *78*20 mm
Weight: 312g

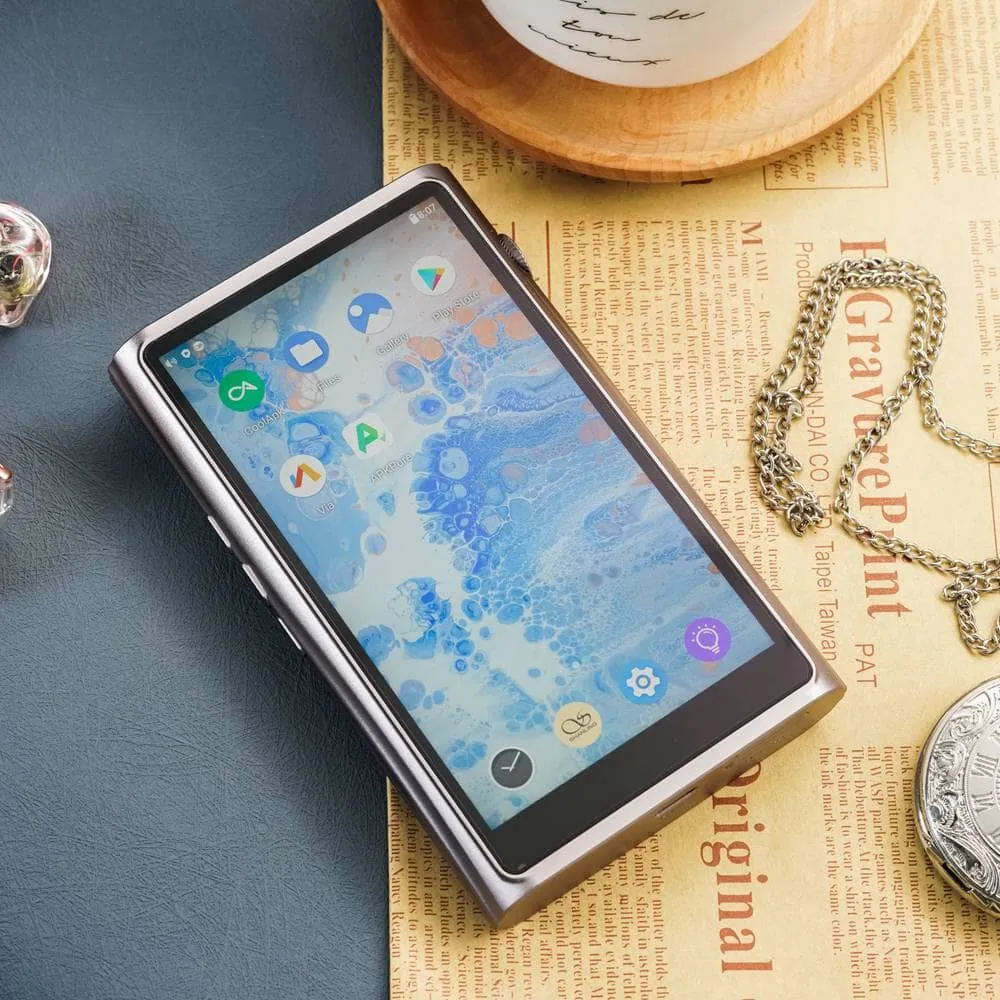

Display: 5-Inch 1920 * 1080
Operating System: Open Android 10
CPU: Qualcomm Snapdragon 665

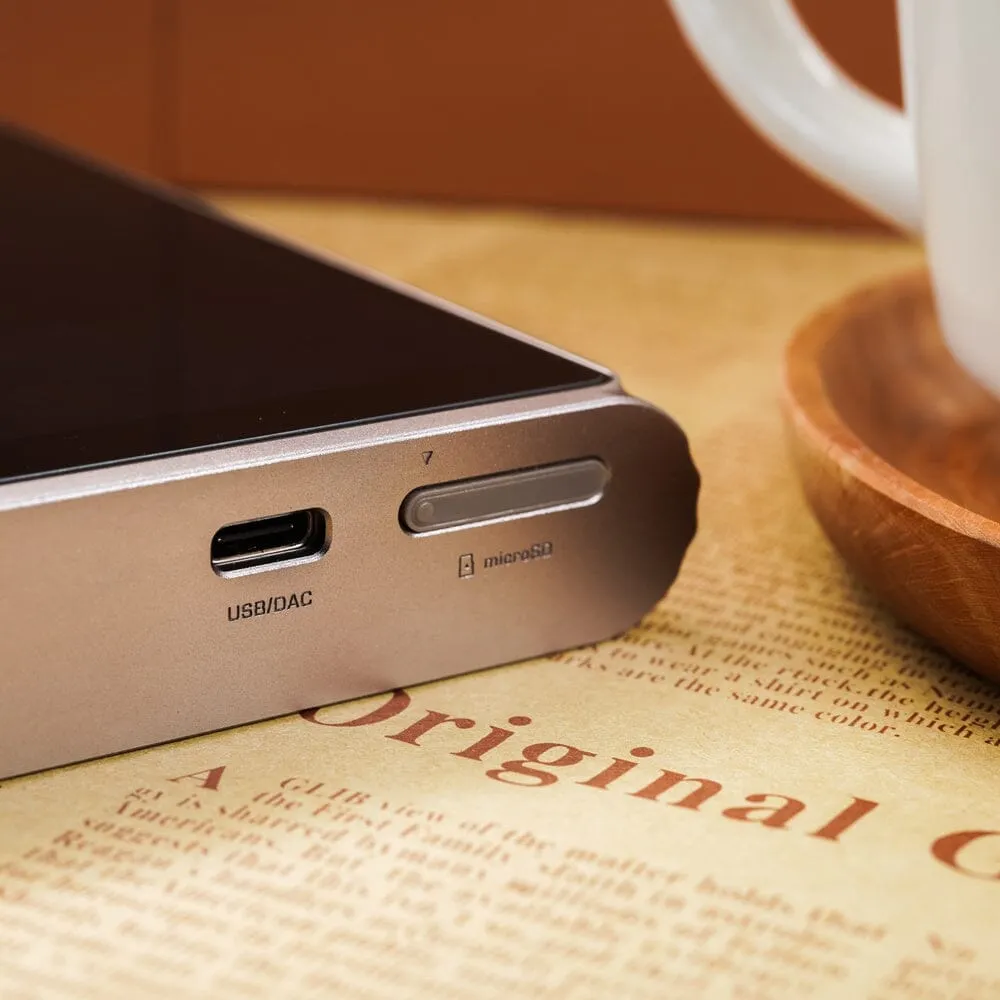

Memory : Ram 6GB, ROM 128GB single Micro SD card slot
Hi-Res support: 32/768 & DSD512 & MQA 16X
Bluetooth: Bluetooth 5.0, two-way, LDAC, LHDC, aptX HD, aptX, SBC Support.

Wi-Fi: 2.4G/5G, supporting DLNA, Airplay
DAC: ESS ES9038PRO
Amplifier: ADA4896-2 MUSES8920 OPA2211 BUF634
Output Power: Single-ended 400 mW@32Ohm // 900mW@32Ohm Balanced
Output: 3.5mm single ended and 4.4mm balanced
Output impedance: Less than 1 Ohm
Battery: 7000 mAh, supporting 18W quick charging
Battery life: Up to 10 hours in single ended and 8.5 hours in balanced

Single-Ended Output:
1. Output Power
Low Gain: 0.73 V@32 Ohm (17 mW)
Medium Gain: 1.88 V@32 Ohm (110 mW)
High gain: 3.61 V@32 Ohm (406 mW)
2. Frequency Response:20 Hz - 40 KHz (0.2 dB)
3. THD N:0.0007%
4. Channel separation:75 dB @ 32 Ohm
5. Dynamic Range:126 dB
6. Signal-To-Noise:126 dB
7. Noise:>116 dB(<1.6 uV)(Low Gain)
8. Output Impedance:<1 Ohm

Balanced Output:
1. Output Power
Low Gain: 1.46 V@32 Ohm (66 mW)
Medium Gain: 3.35 V@32 Ohm (350 mW)
High gain: 5.43 V@32 Ohm (920 mW)
2. Frequency Response:20 Hz - 40 KHz (0.2 dB)
3. THD N:0.0007%
4. Channel separation:115 dB @ 32 Ohm
5. Dynamic Range:128 dB
6. Signal-To-Noise:128 dB
7. Noise:>113 dB(<2.2 uV)(Low Gain)
8. Output Impedance:<1 Ohm

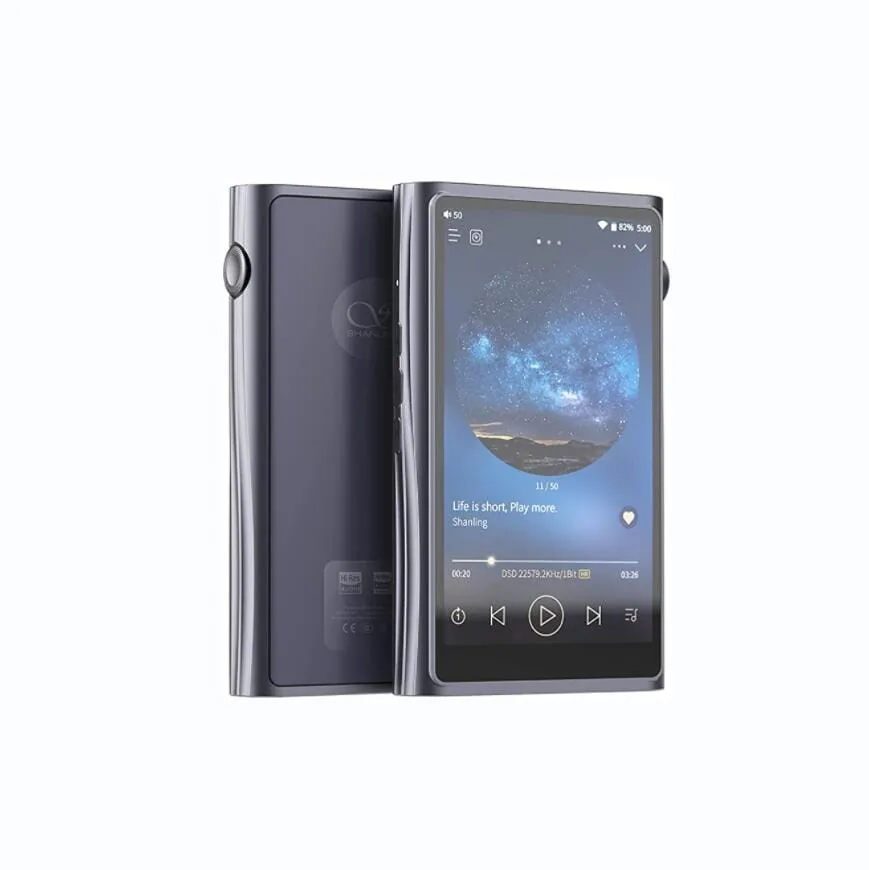

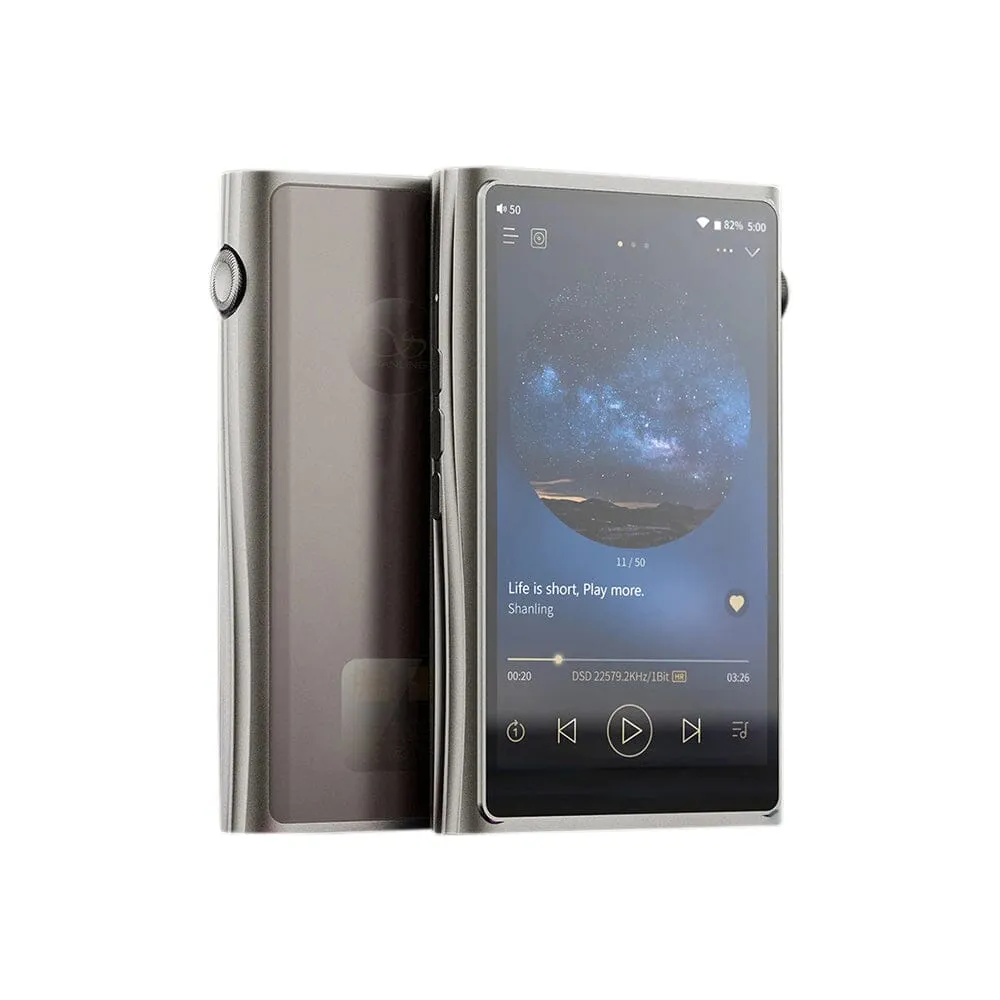

SHANLING M7 Portable Flagship Digital Audio Player
  • Titanium
  • Blue

$ 63.48

$ 48.83
