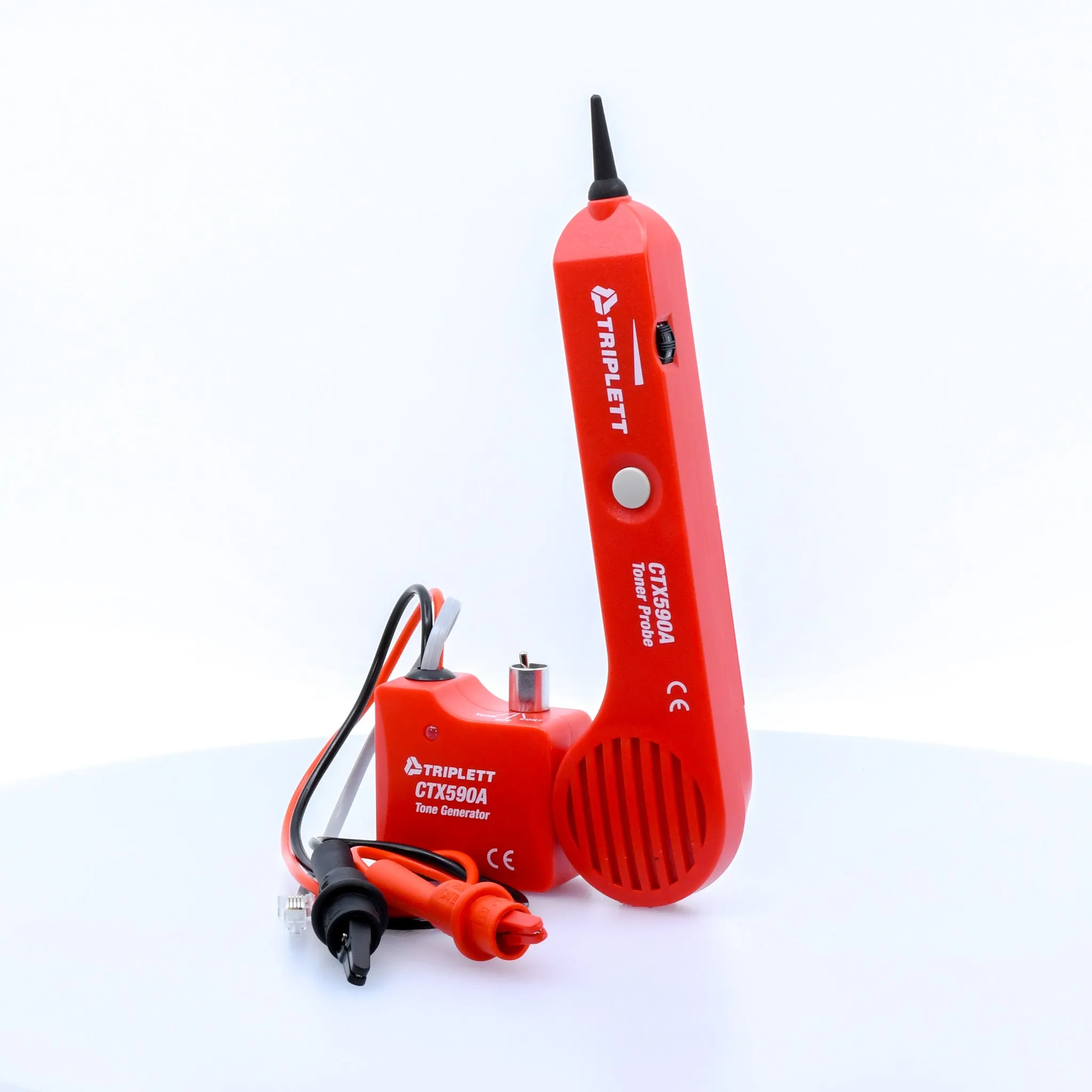

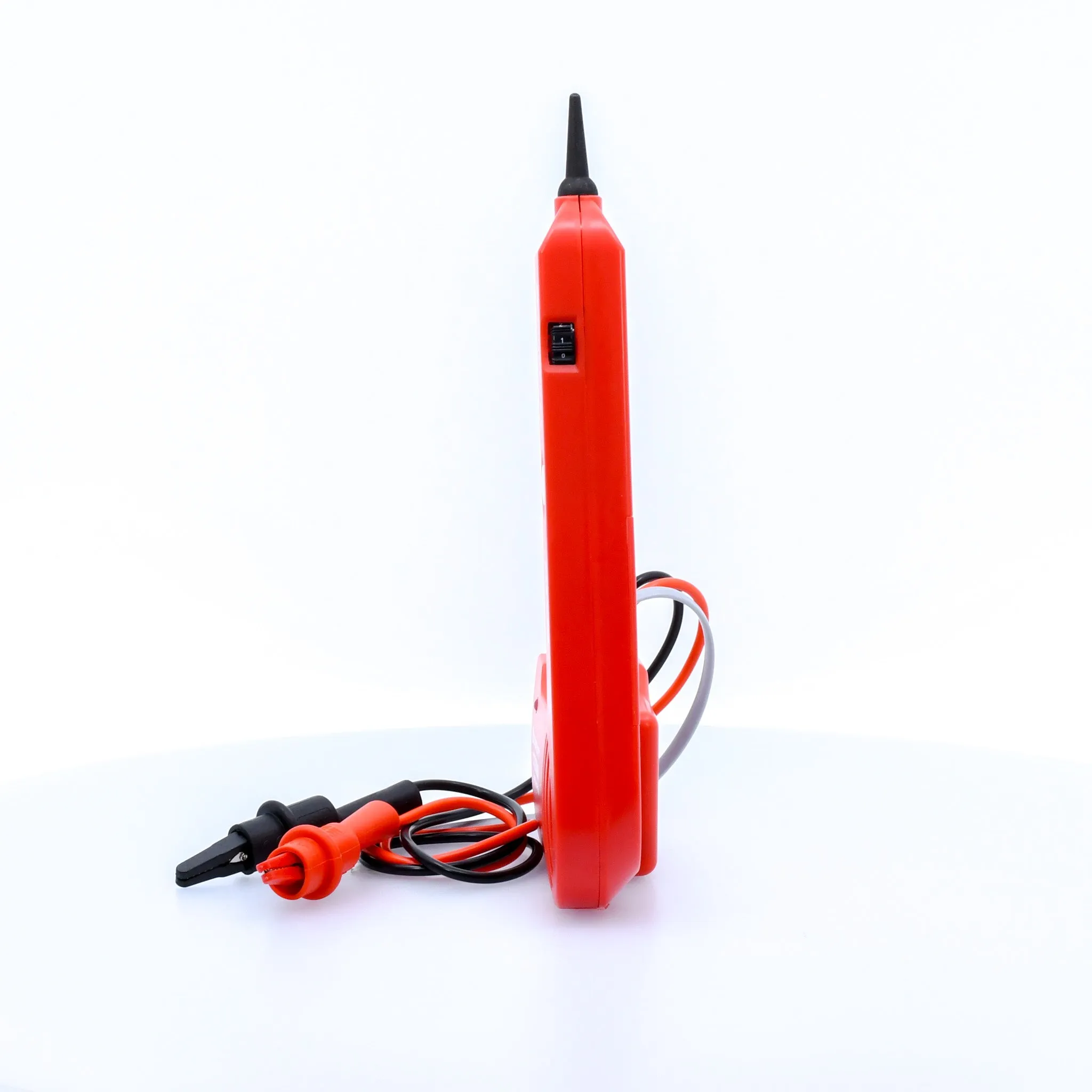

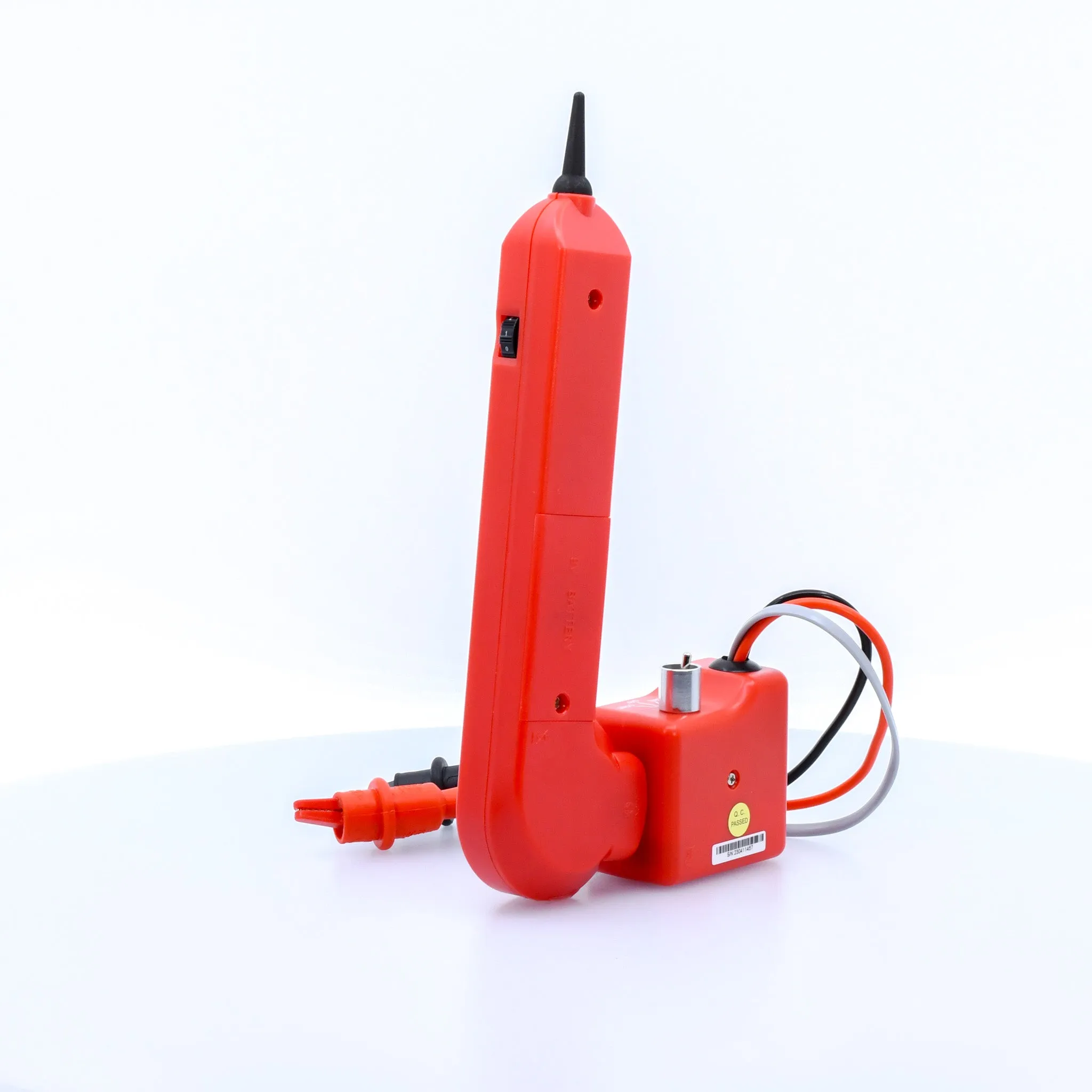

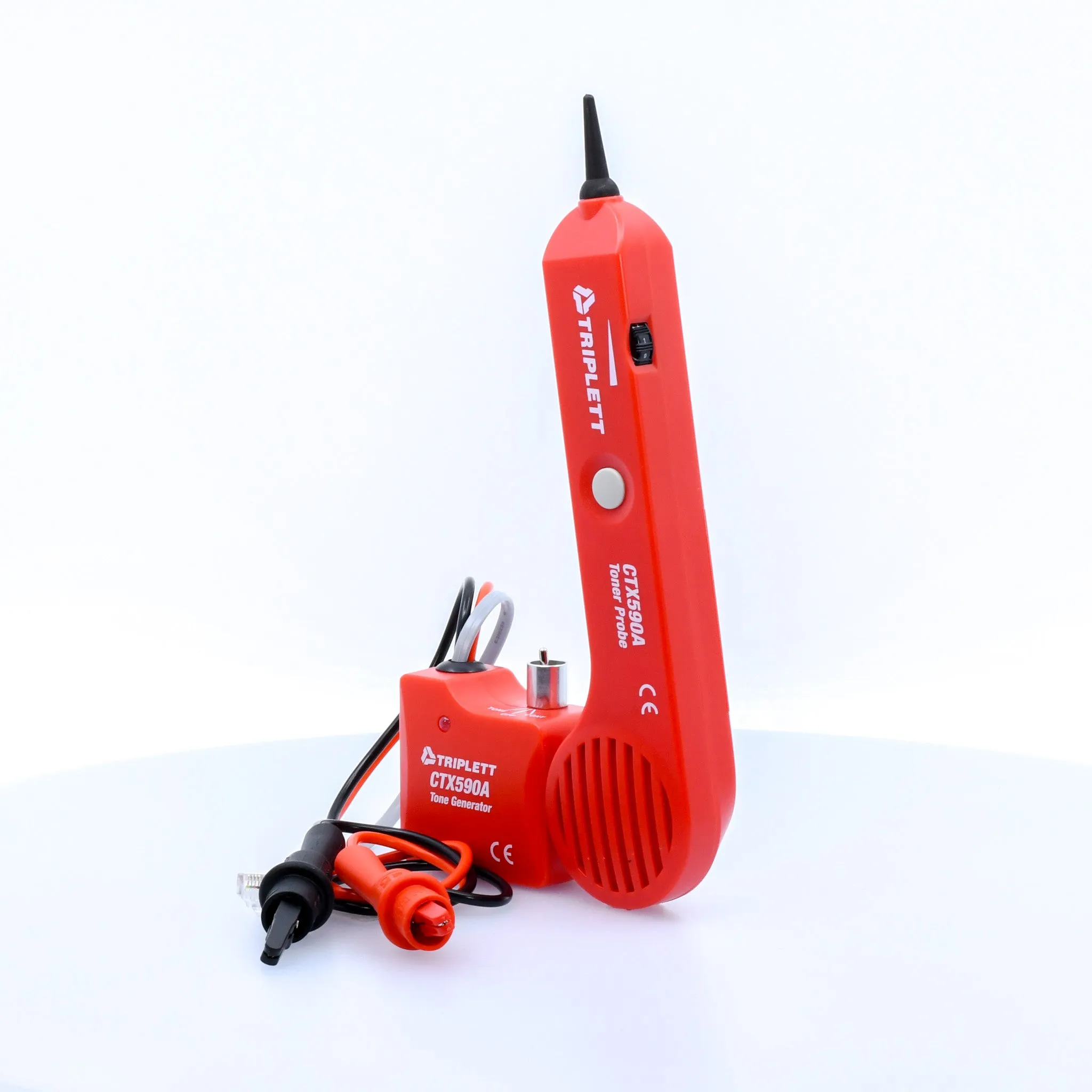

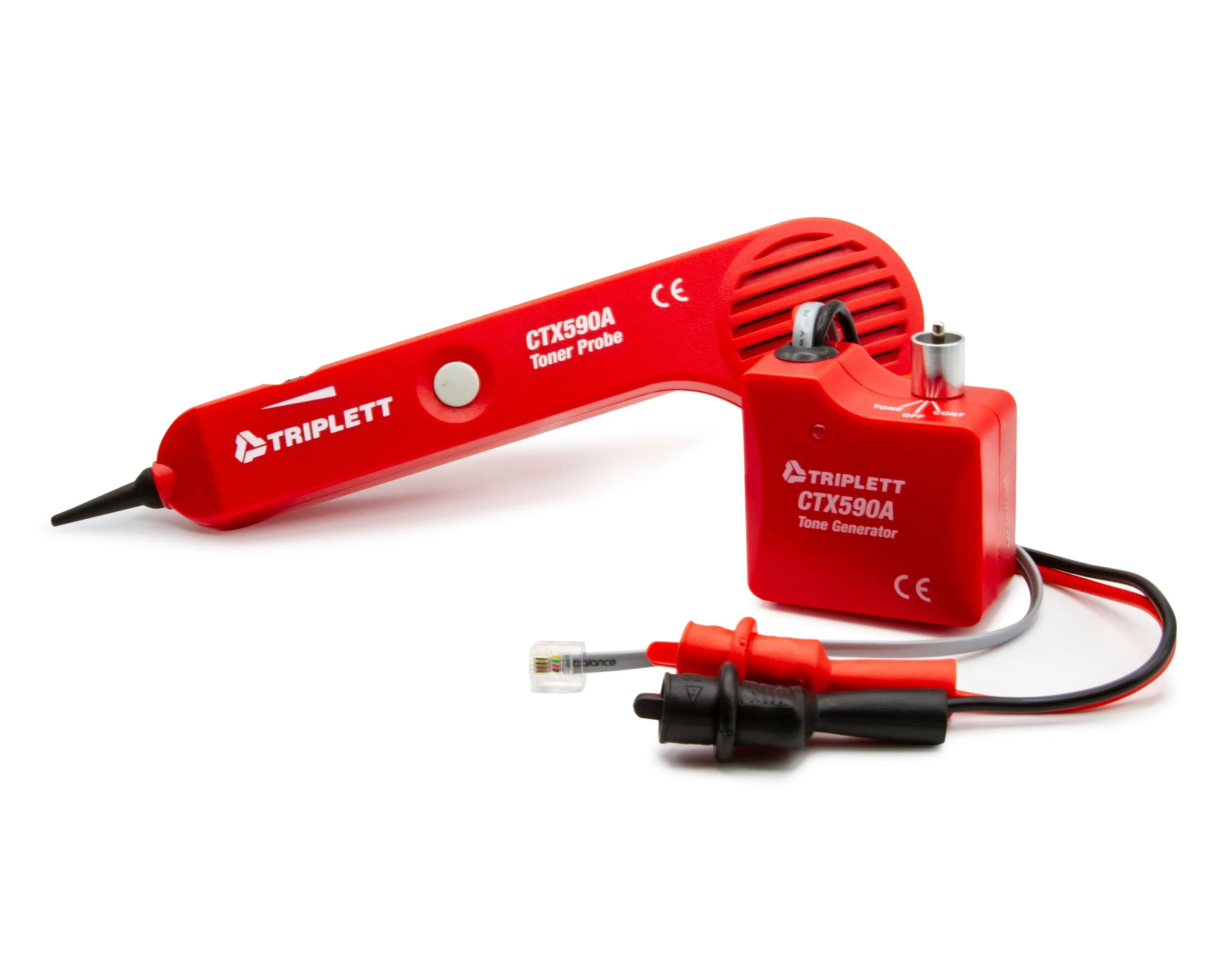

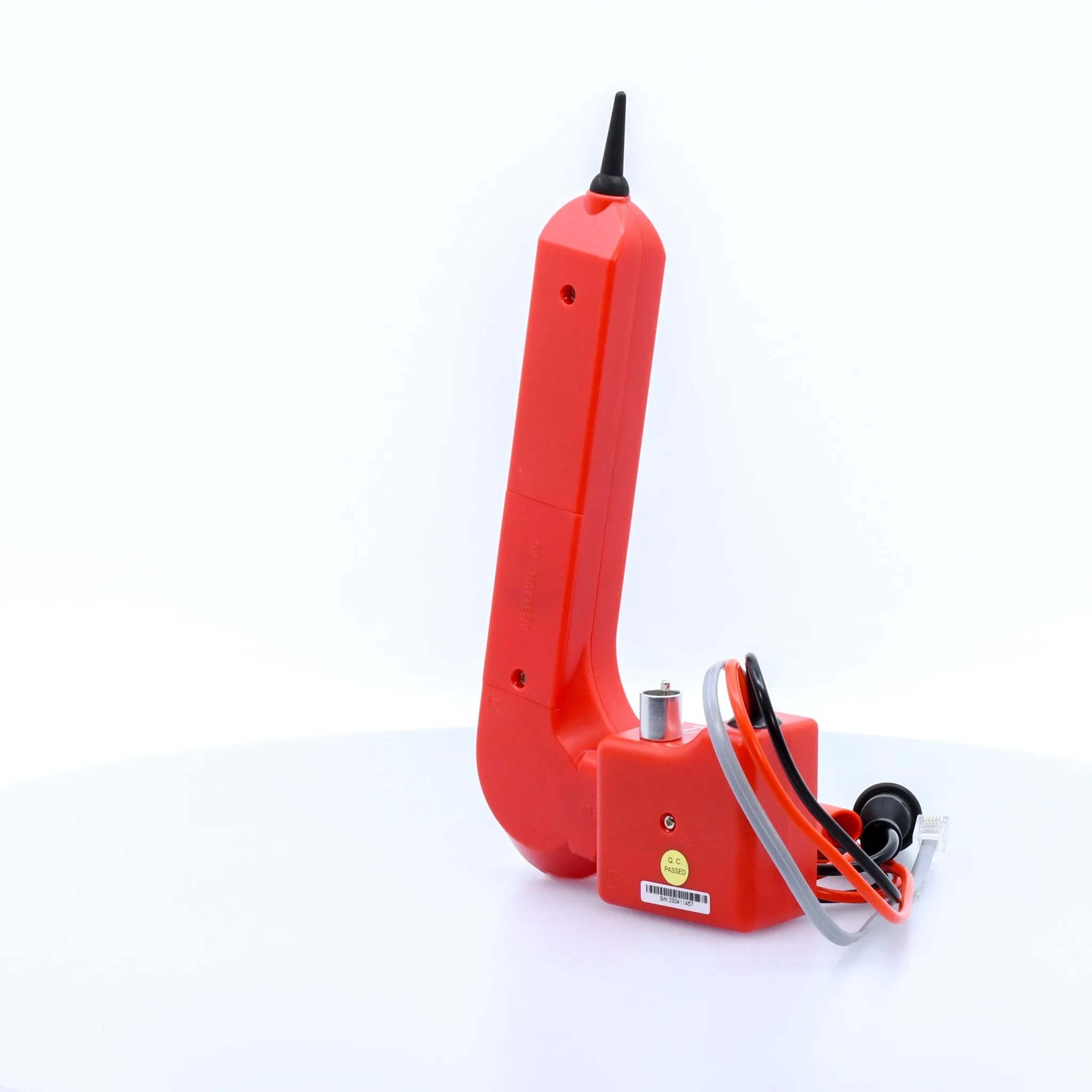

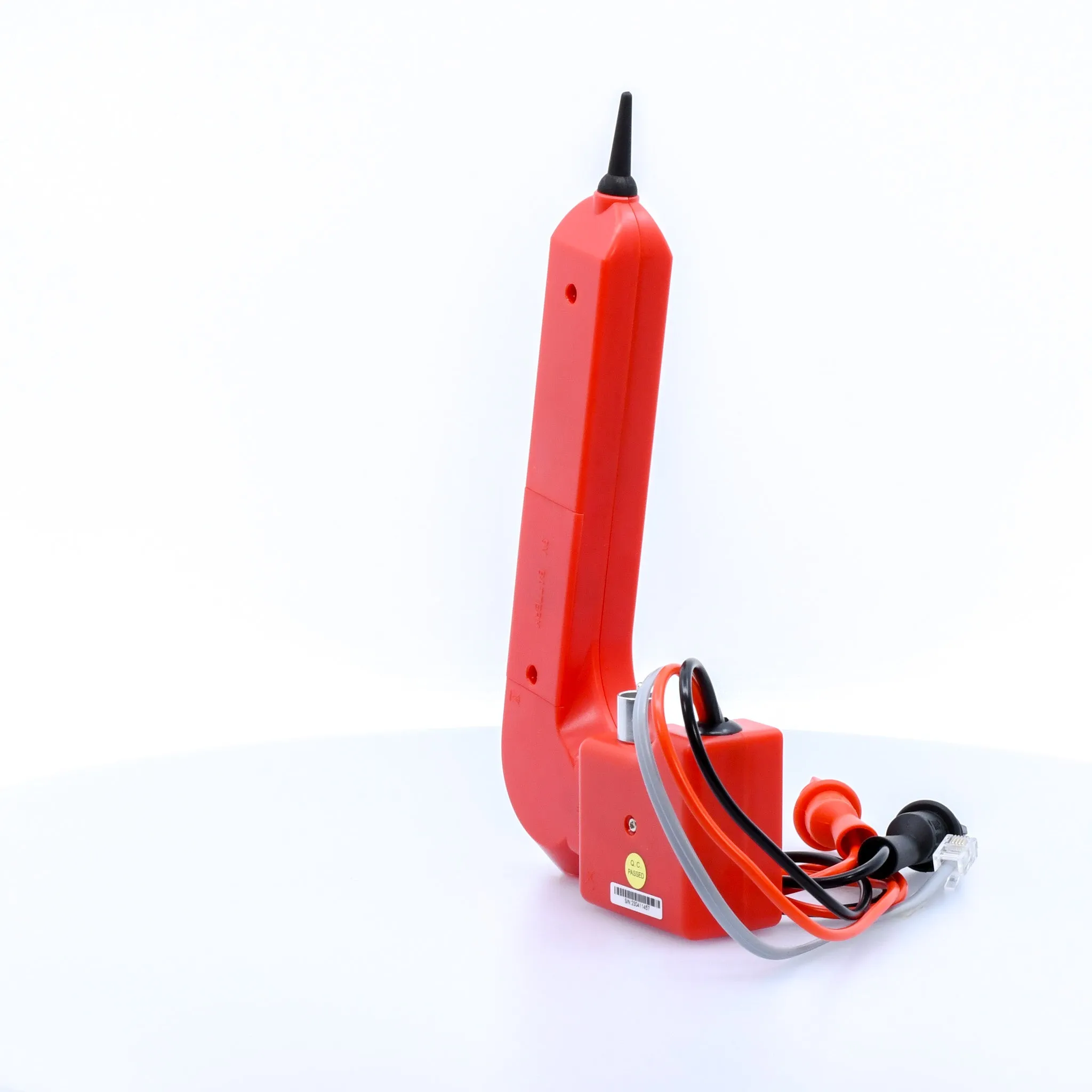

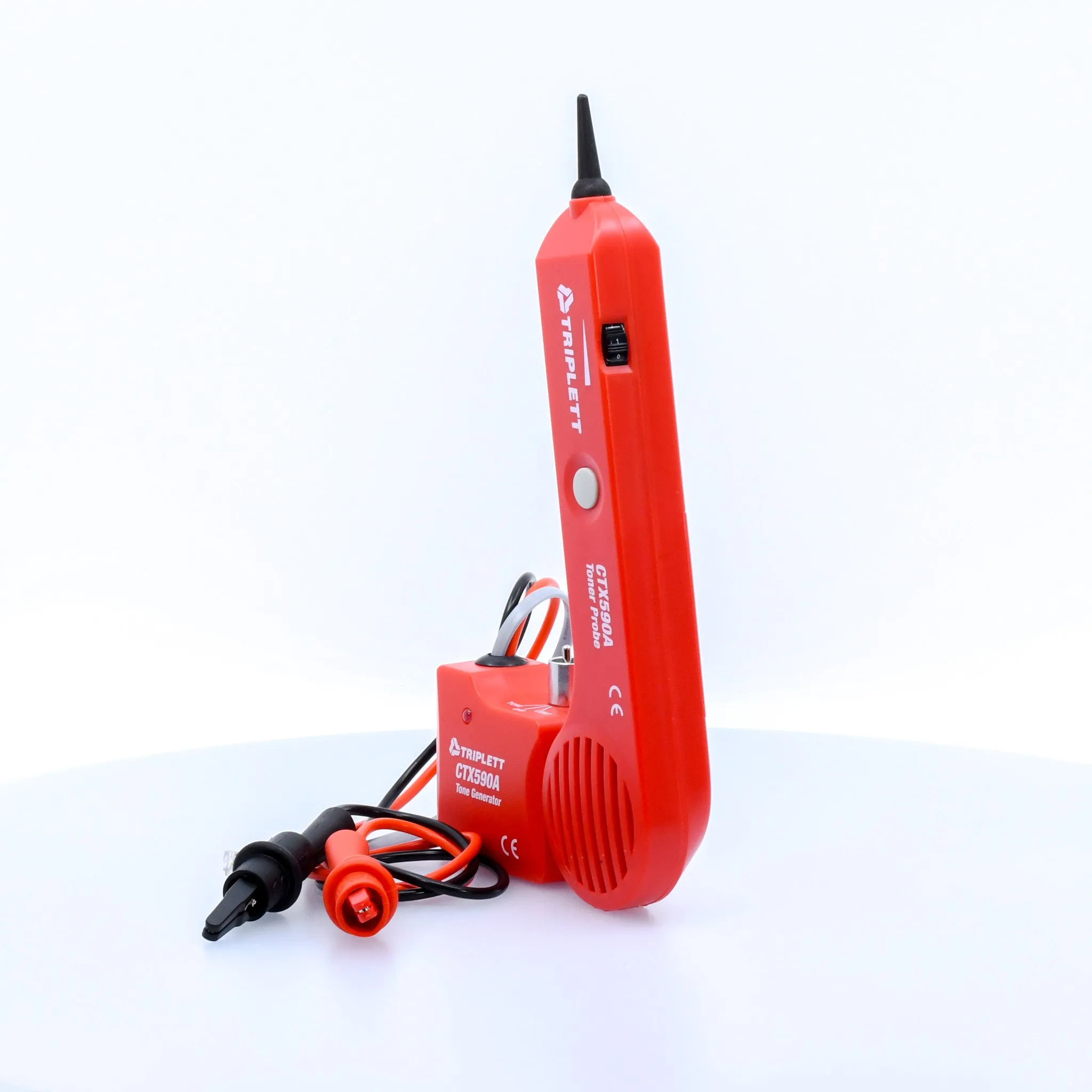

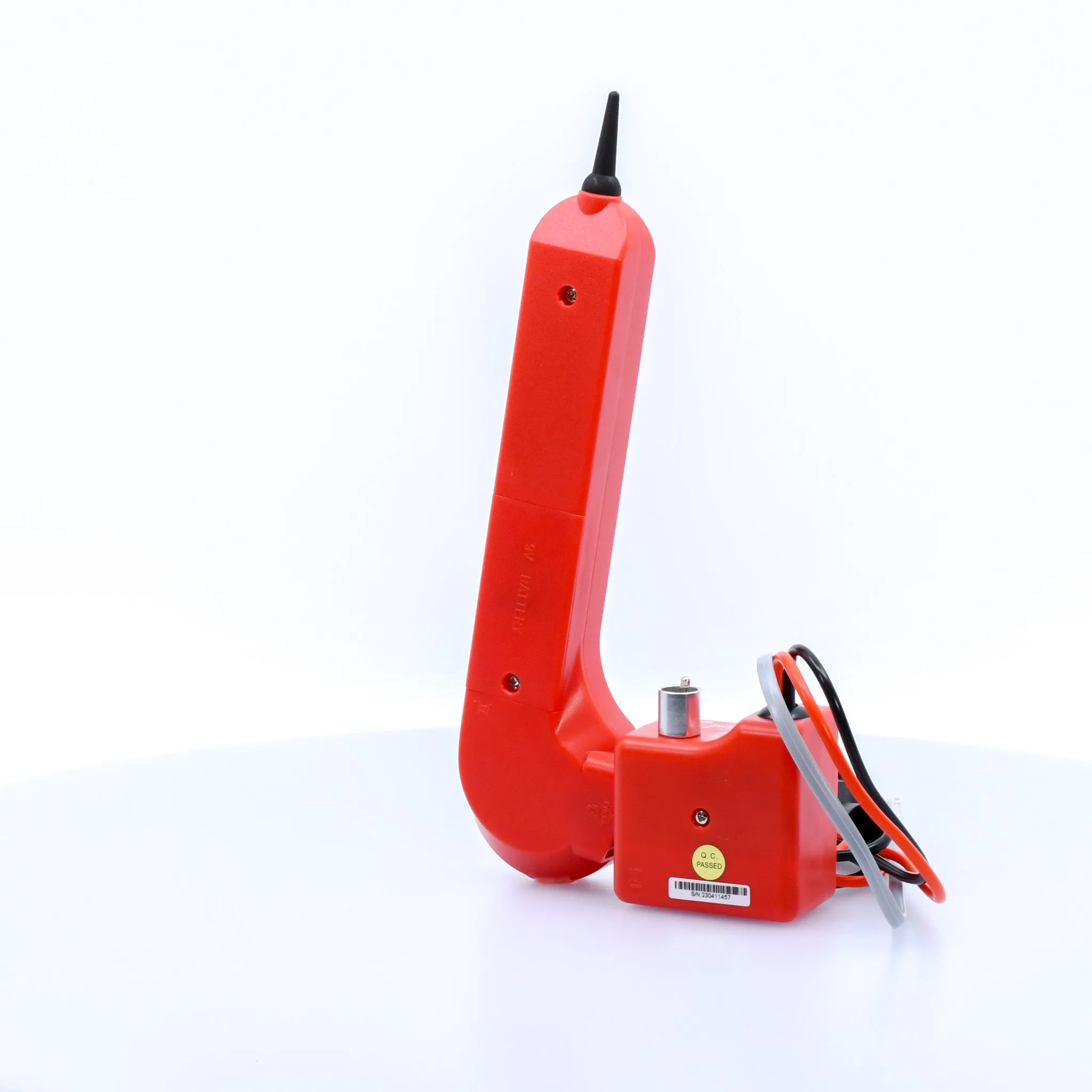

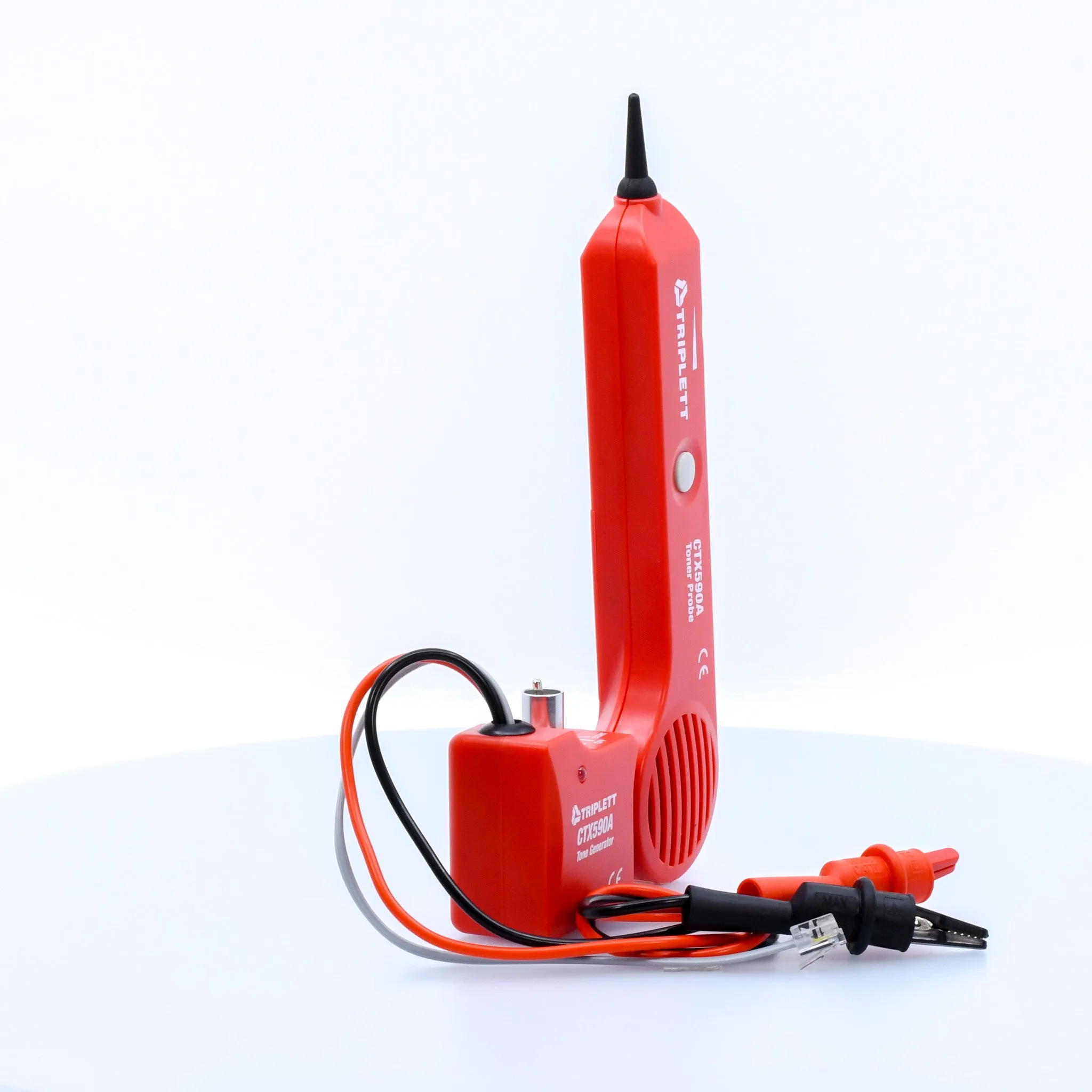

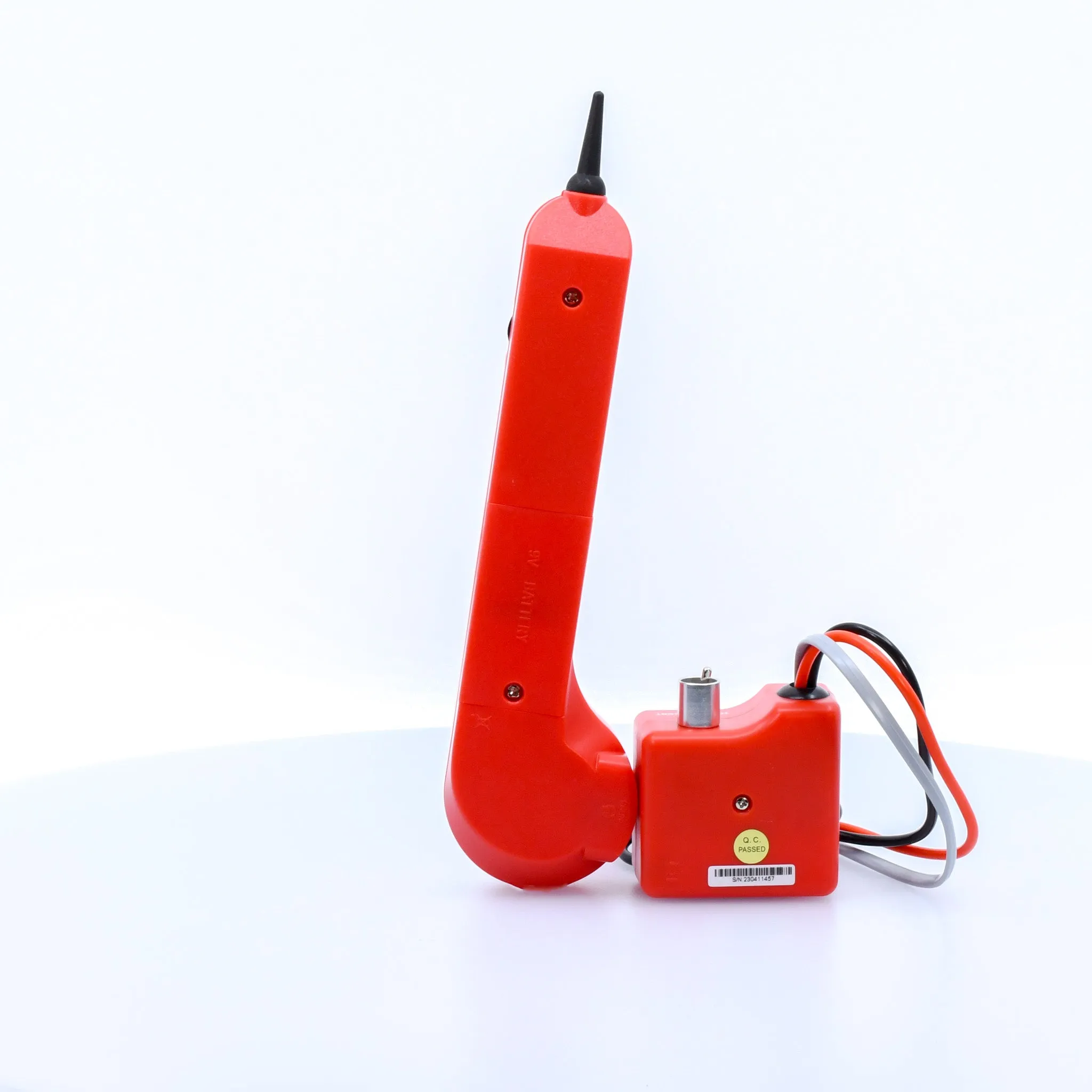

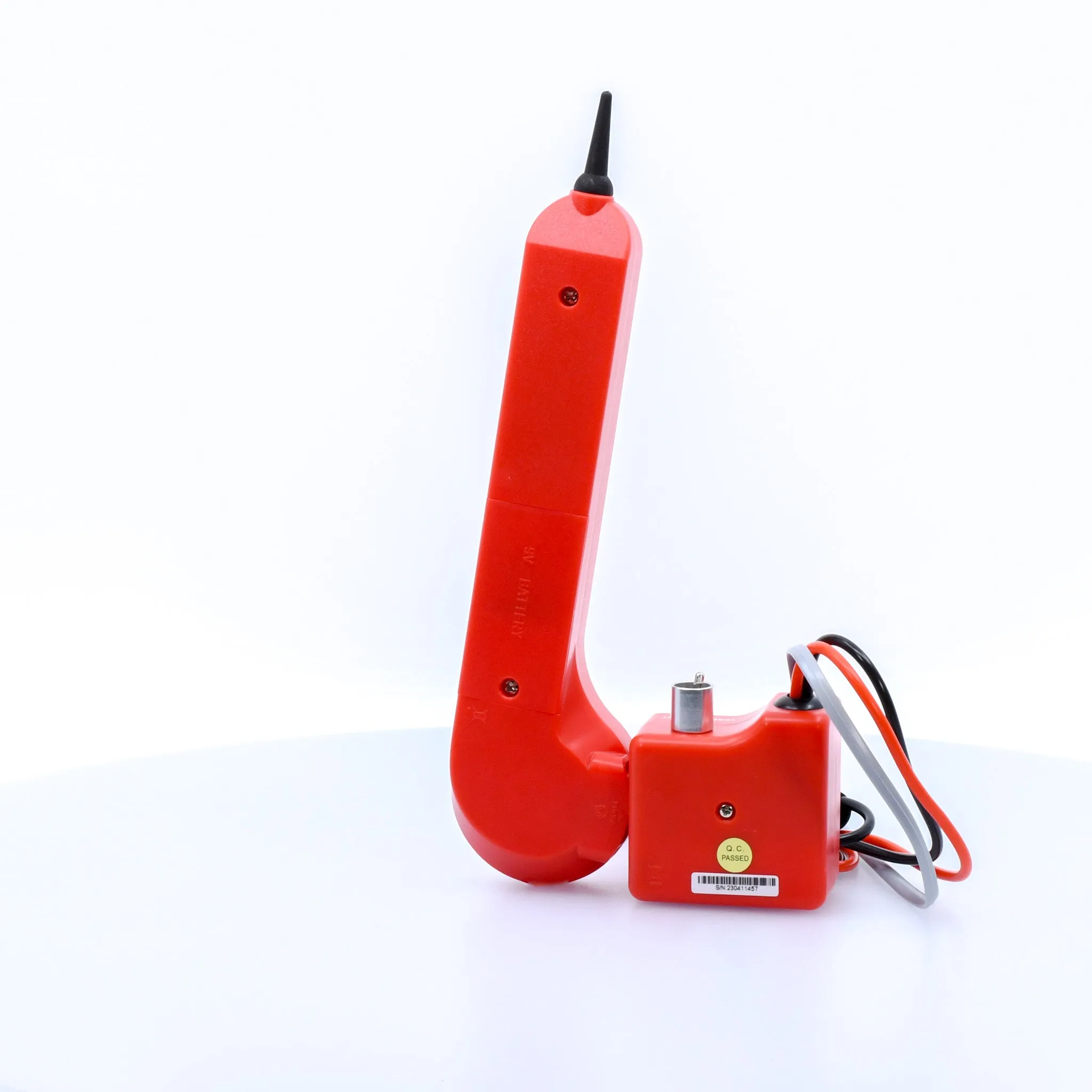

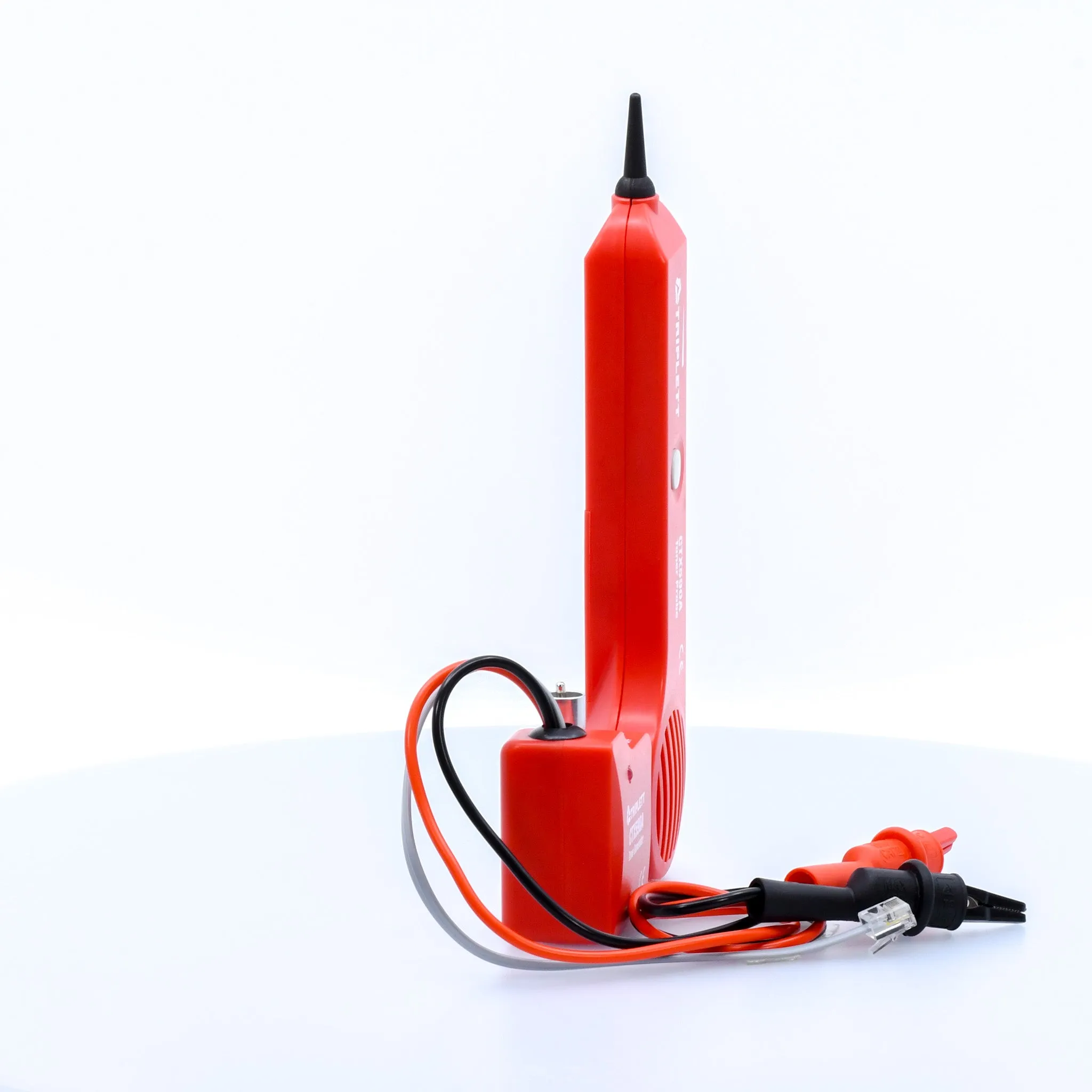

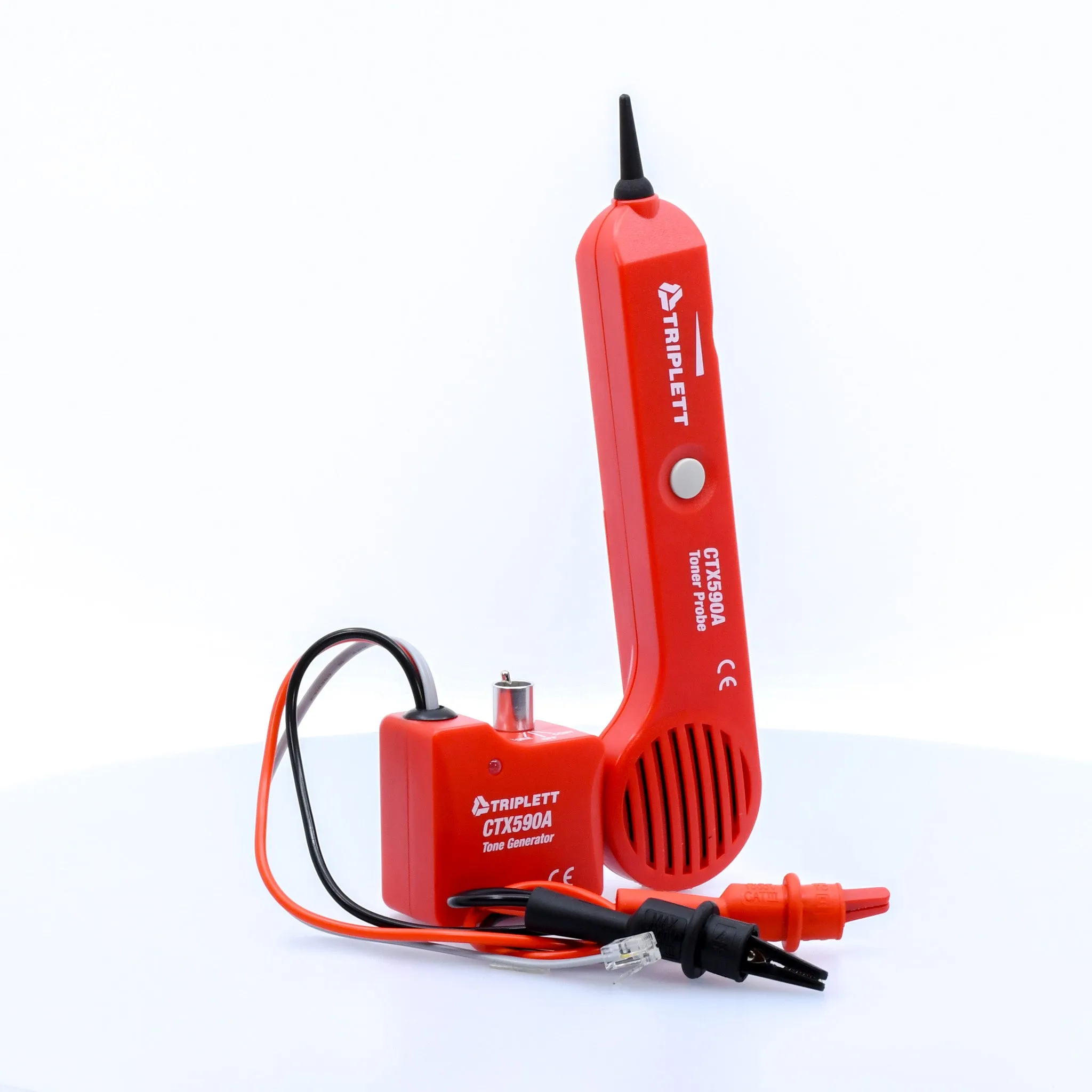

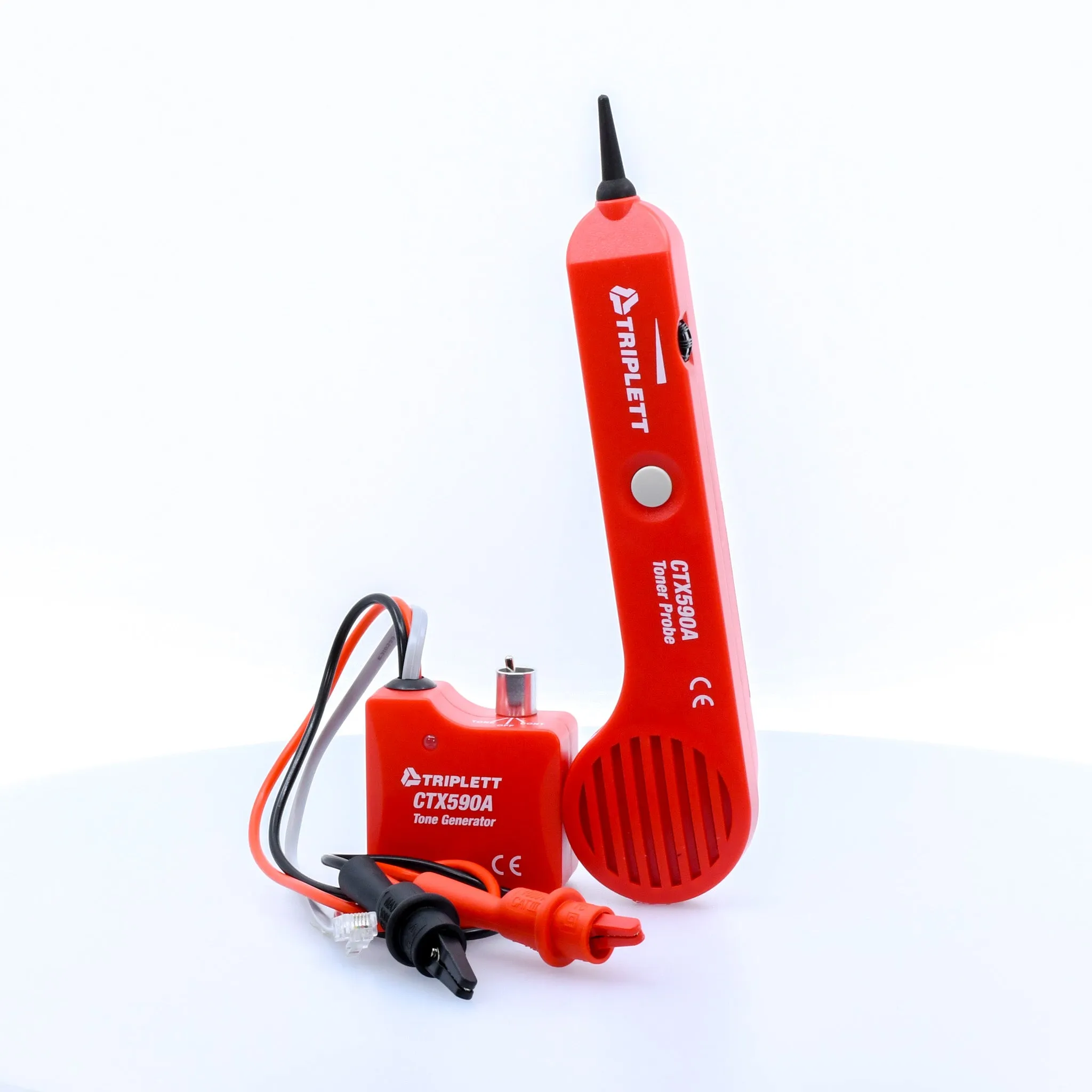

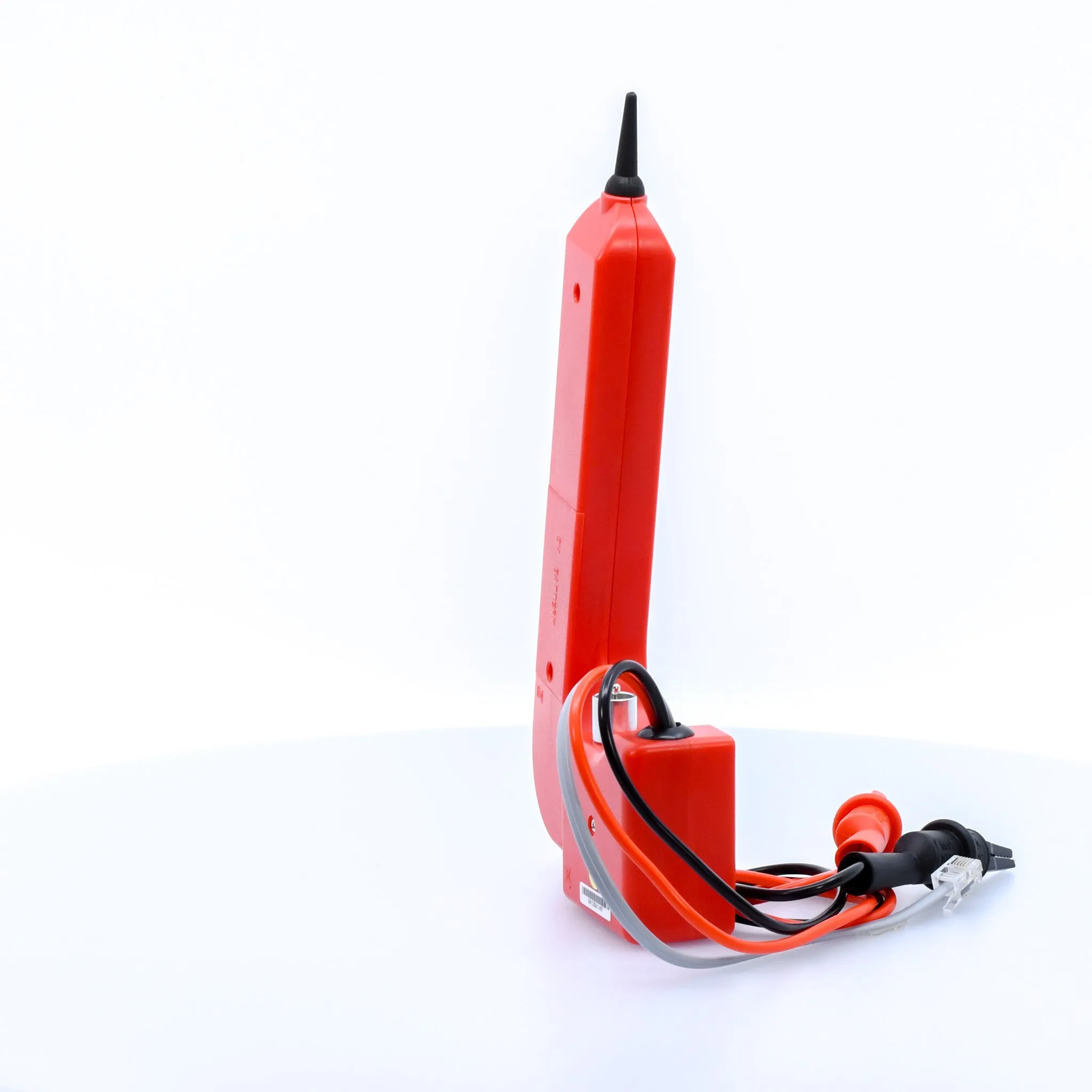

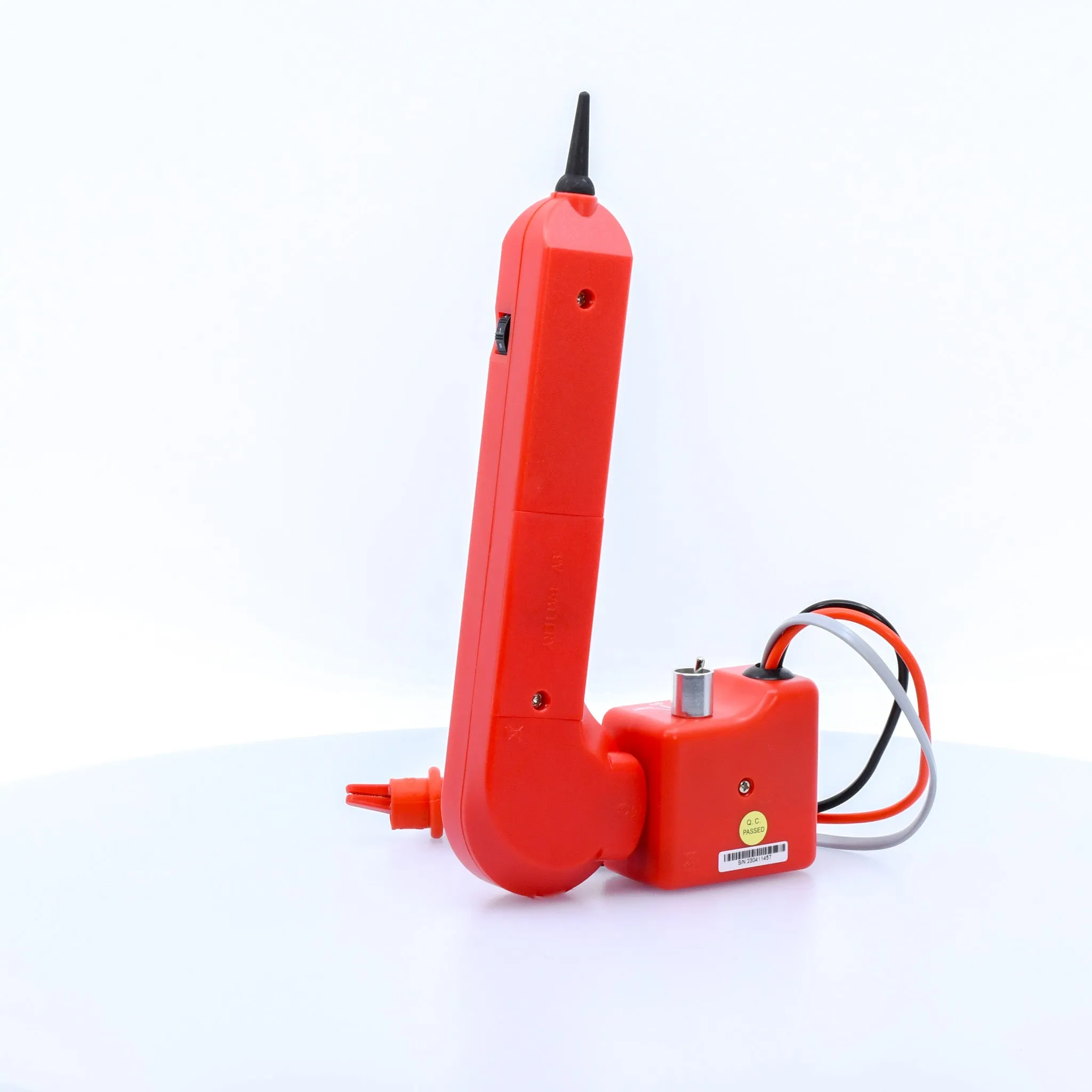

The Triplett CTX590A ProTone Wire Locator Kit features a powerful tone generator and probe. The CTX590 functions as a high quality wire locating tool that uses an inductive probe to sense a tone placed on the wires by its associated tone generator.
DESCRIPTION

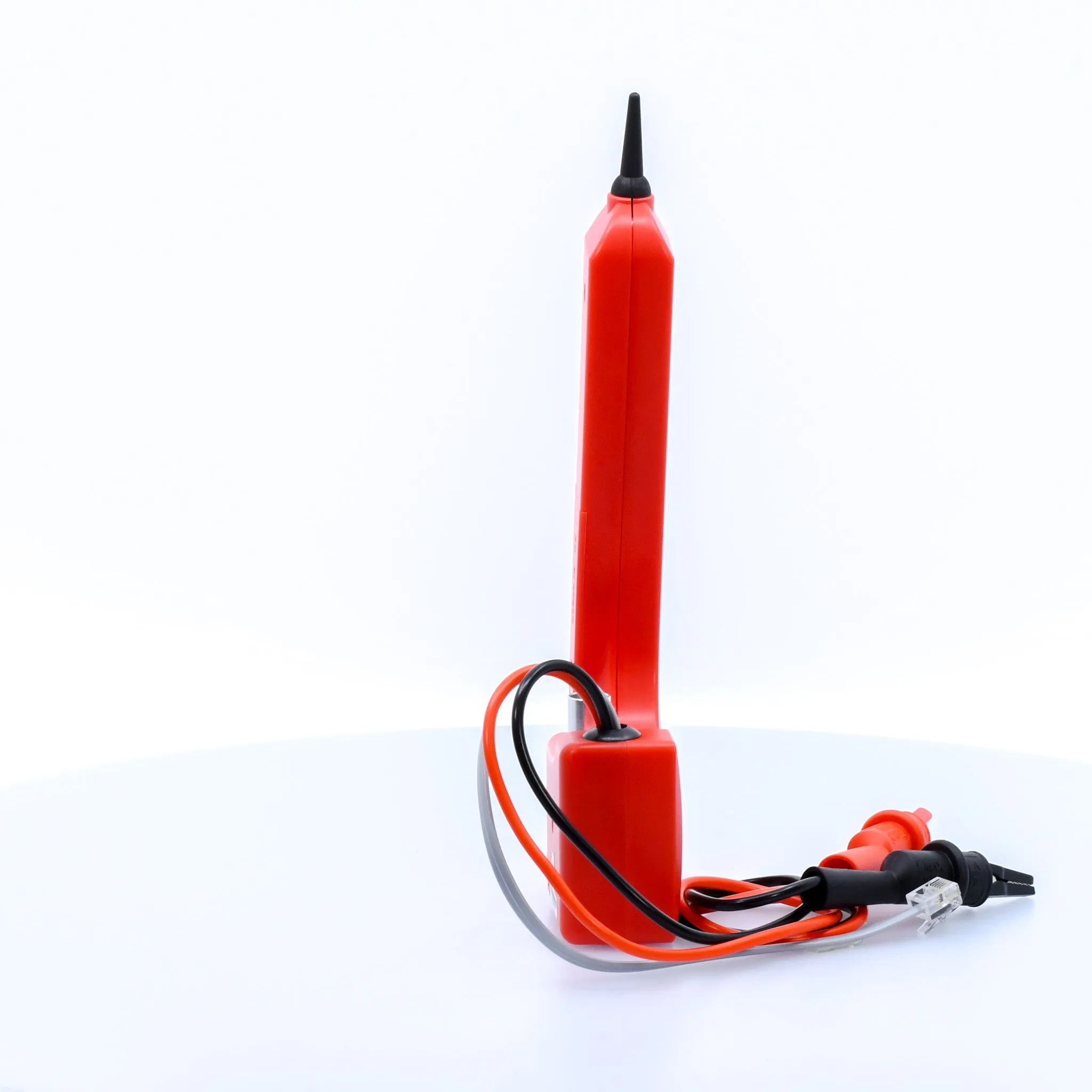

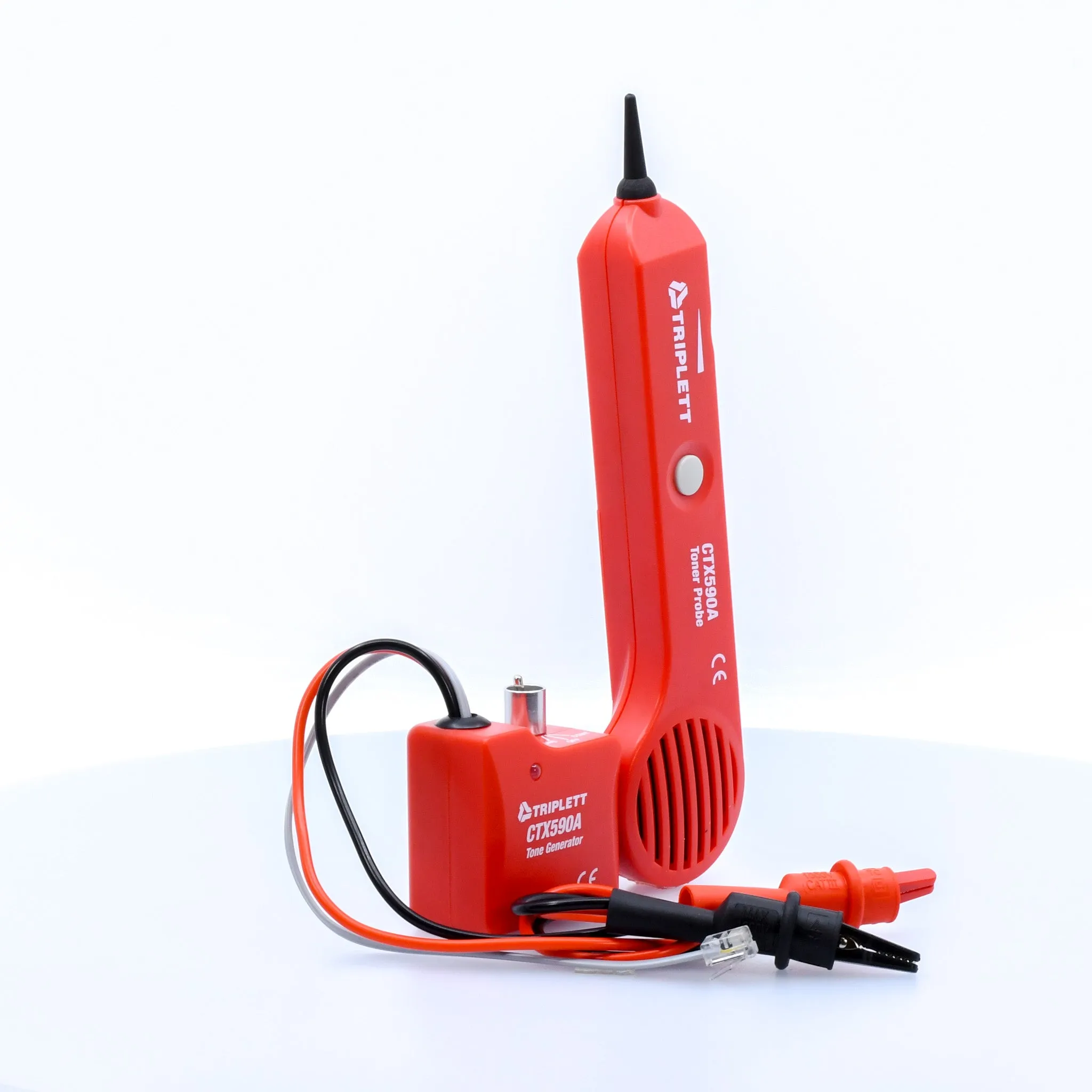

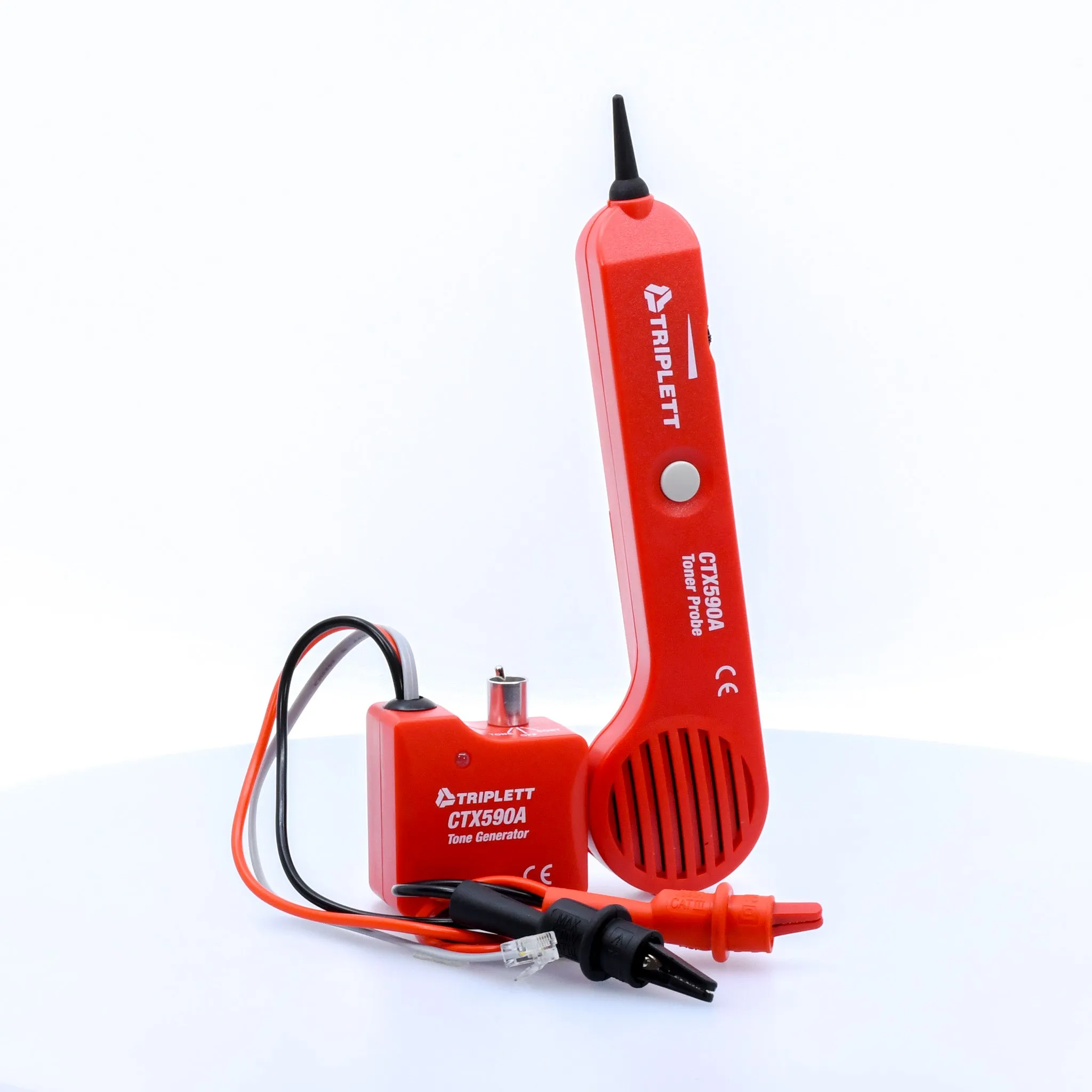

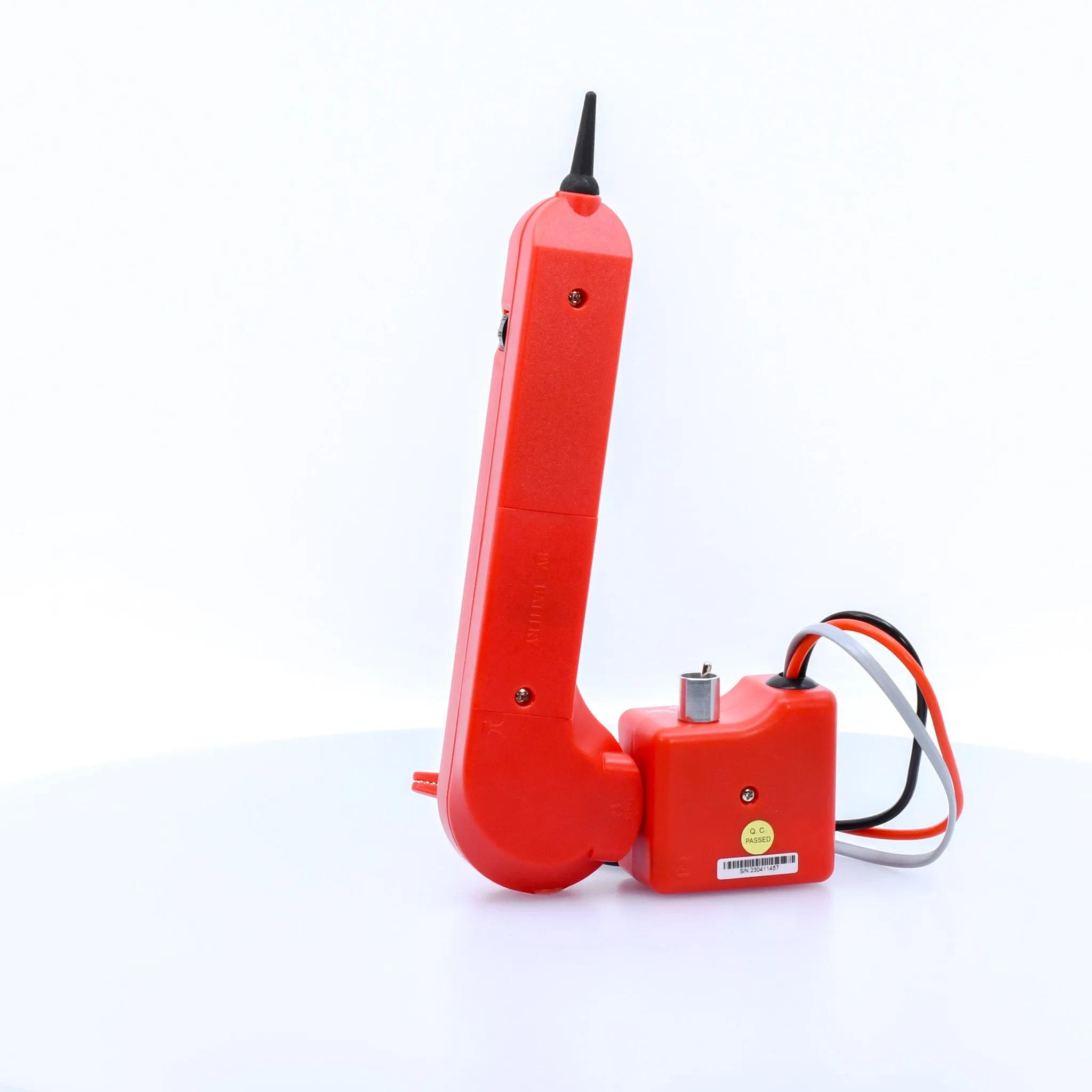

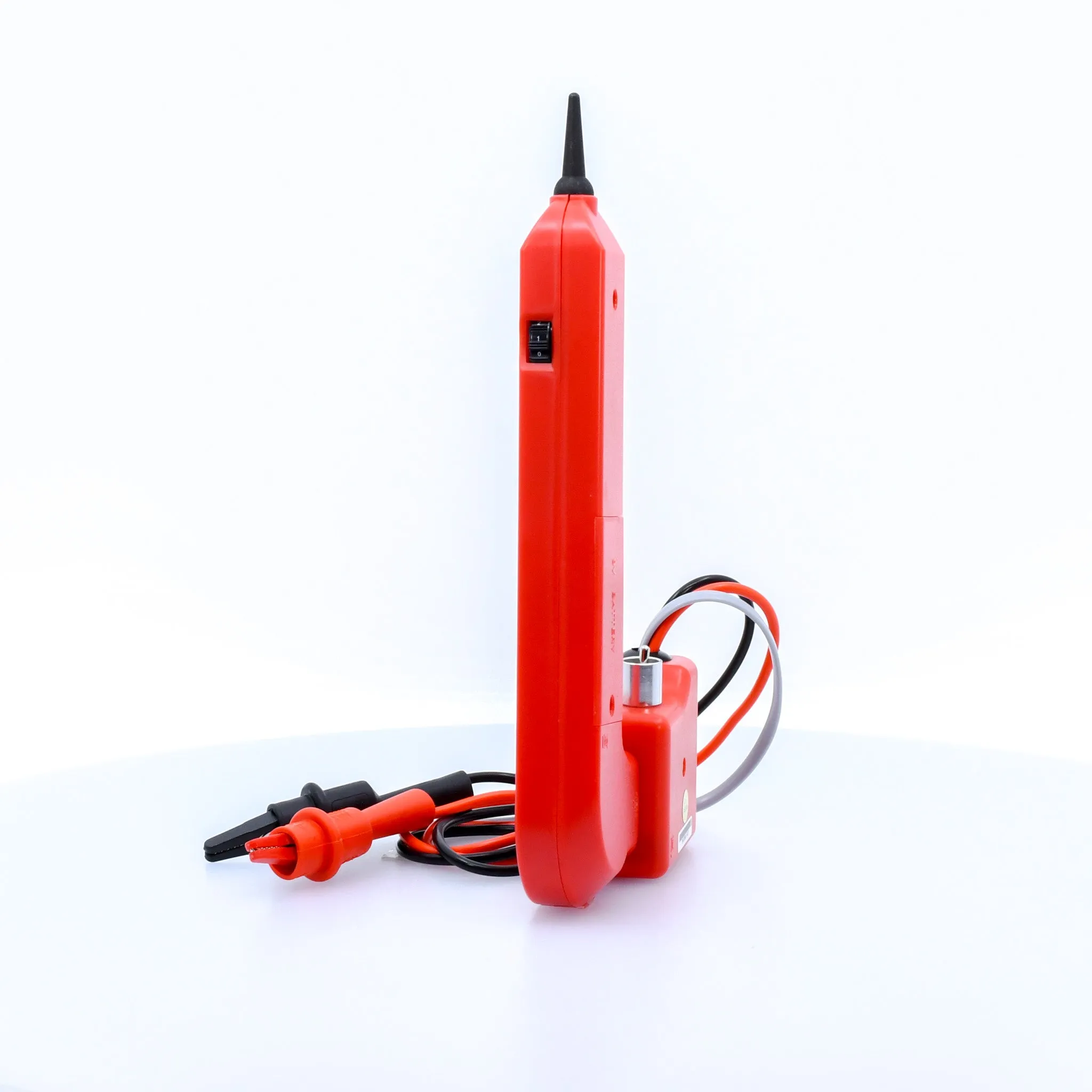

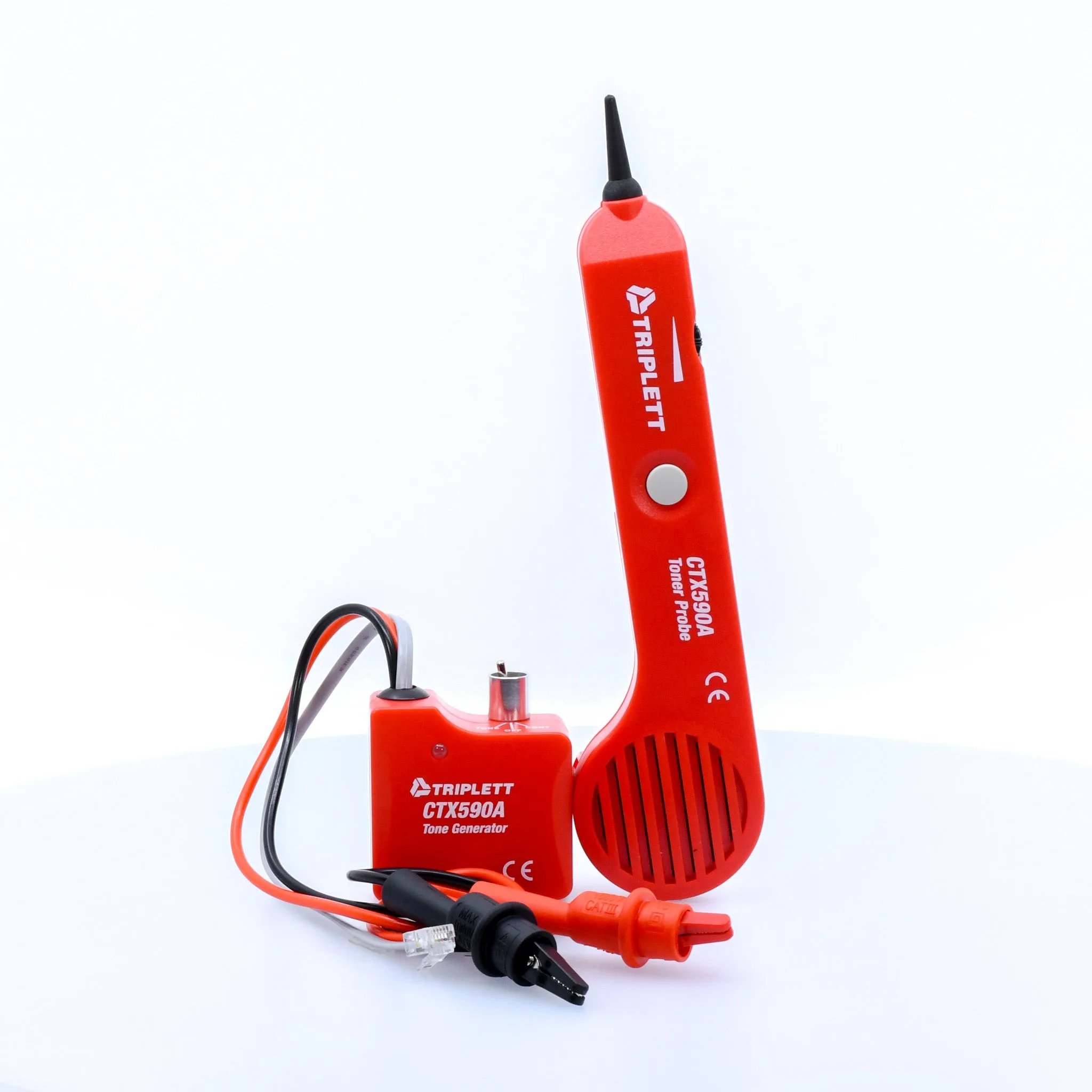

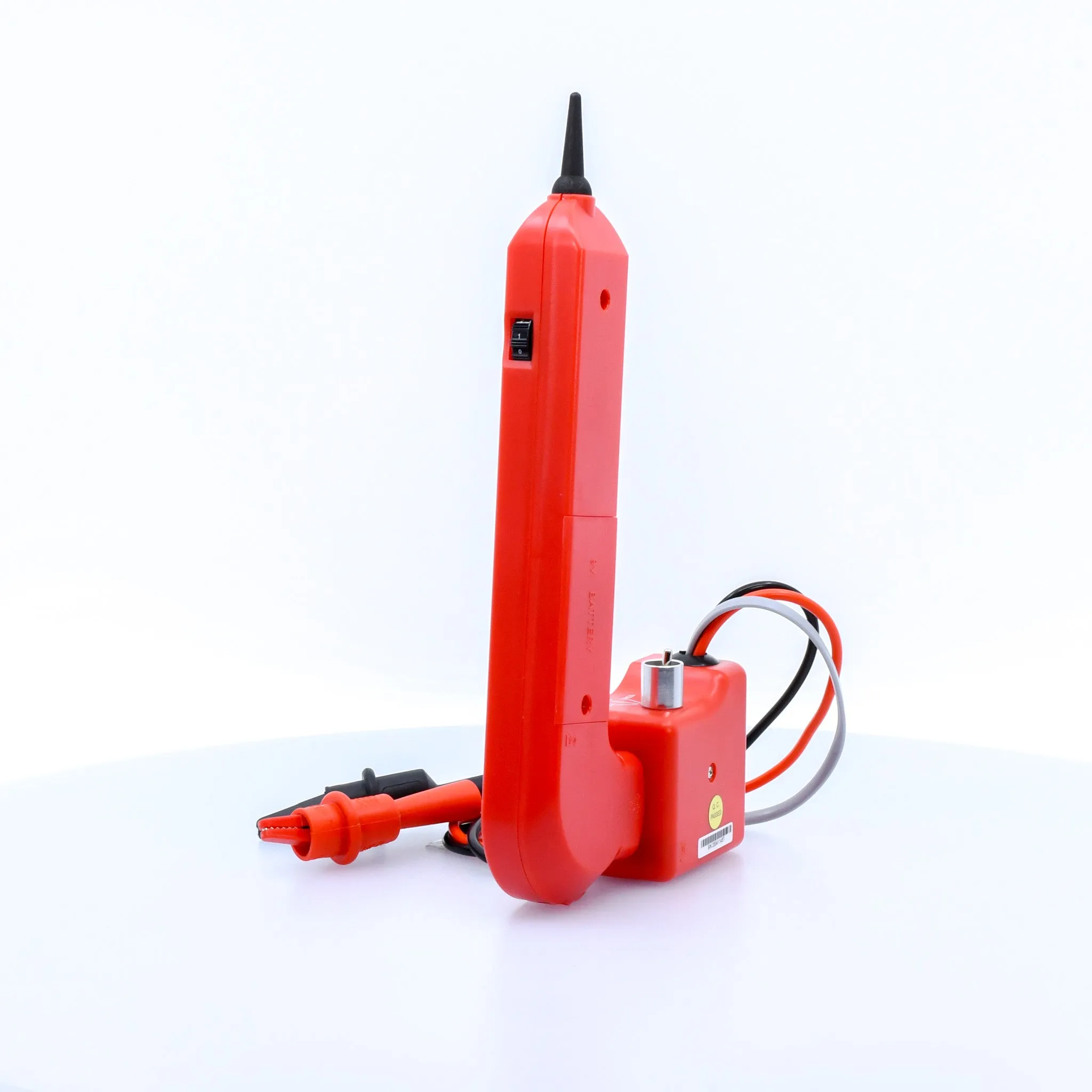

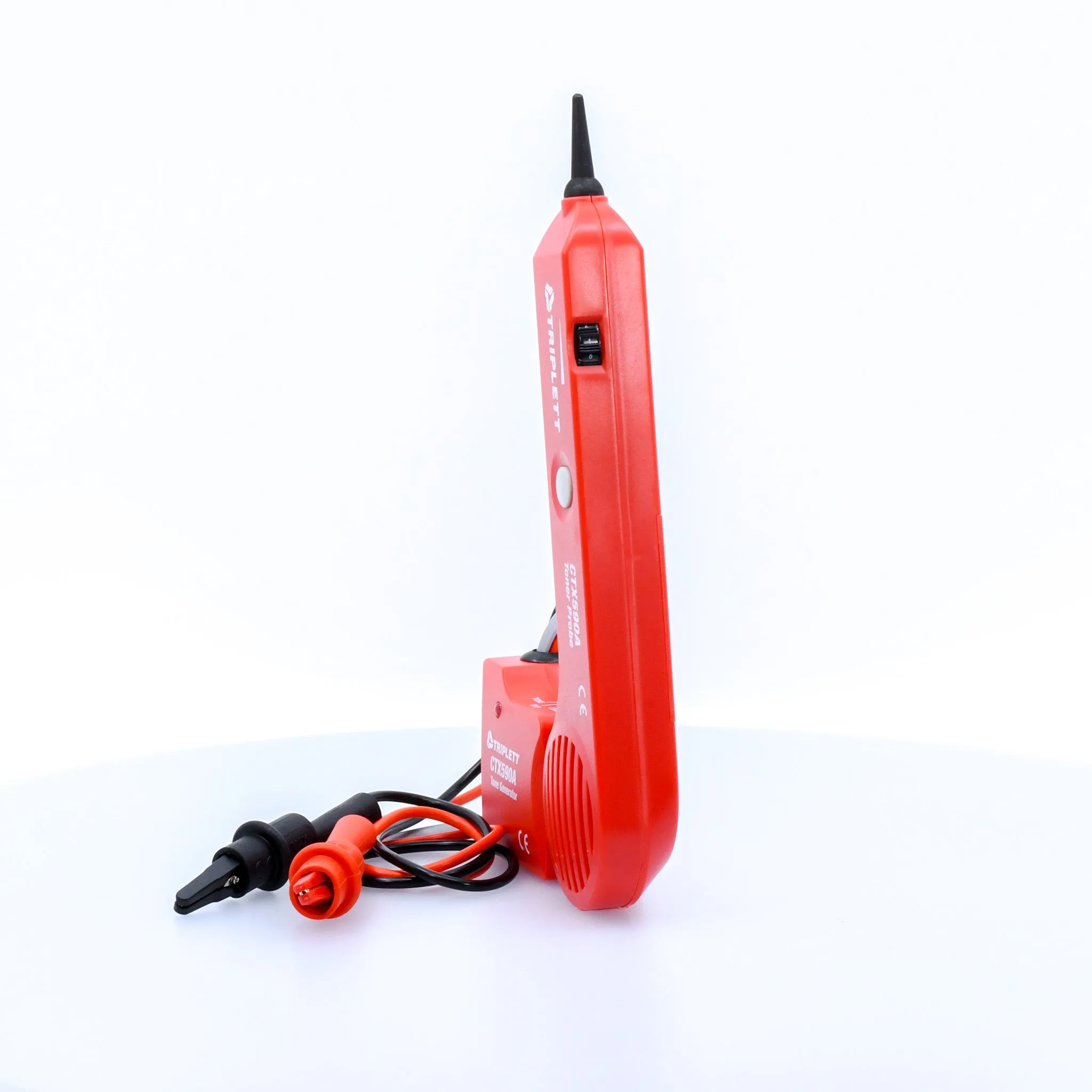

The Triplett CTX590A ProTone Wire Locator Kit features a powerful tone generator and probe. The CTX590 functions as a high quality wire locating tool that uses an inductive probe to sense a tone placed on the wires by its associated tone generator. The tone generator provides RJ11, RJ45 and insulated alligator clip connections. The Red/Green LED on the probe indicates continuity, voltage, and polarity. The probe also includes a sensitivity control. The CTX590A can be used for tracking down short circuits, telephone central office connections, and other wire locating applications. Includes (2) 9V batteries, RJ45, RJ11, Alligator clip connectors and case. 1-year warranty.
CATEGORY:
Features
- Traces various types of cables including: twisted pair, LAN, multi-conductor, telephone/alarm and unpowered electrical wire
- Loud tone with sensitivity control and tone LED for controlled operation
- Additional tests: voltage, polarity and continuity
- RJ11, RJ45 and insulated alligator clips for connection; Includes (2) 9V batteries and pouch; 1 year warranty
Specifications
| CTX590A | |
| Input Voltage | Max: 24VAC |
| Power | 9V Batteries for Toner and Probe |
| Dimensions | Toner: 2.3 x 2.3 x 1.35” (58.5 x 58.5 x 34.3mm) |
| Probe: 9 x 2.25 x 1” (228 x 57 x 25.4mm) | |
| Weight | 9.5oz (270g) |
Downloads
FAQs
-
Q. Will the CTX590A work for both RJ11 and RJ45 connections? Why is there only one connector.
A. The modular connector on the CT590A is newly designed to work for both types – RJ11 and RJ45 so there is only (1) cable needed.
