XBO 150W/CR Osram 69237?á

substitute for:?á XBO 150W/1 OFR Osram 69235?á?á

Discounts available, depending on quantity .....
Call 516.766.2266?á - or -?á E-mail:?á?á?á

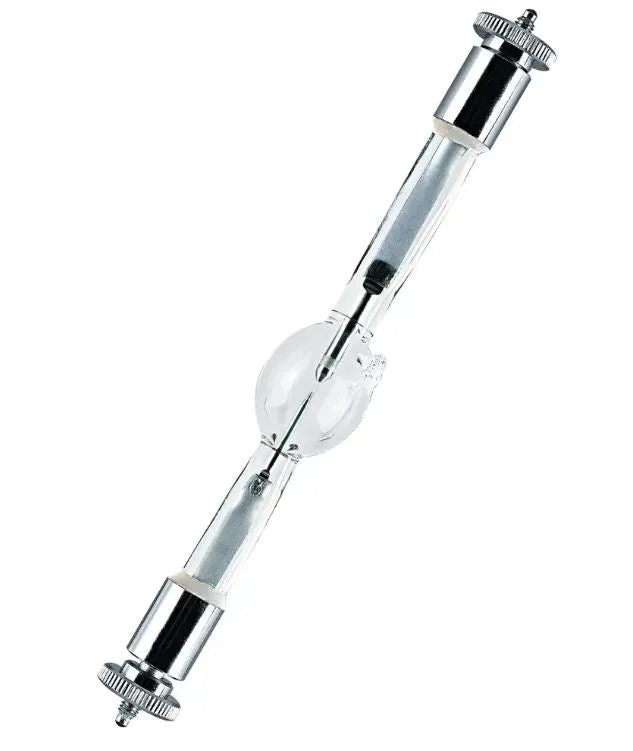

The Osram XBO 150 W/CR OFR is a 150 watt, ?áxenon short arc, double-ended. Typical lifetime is 3000 hours (Vertical), 1200 hours (Horizontal). This lamp has SFc12-4 (anode) and SFcX12-4 (cathode) basing on the 20mm diameter x 150mm long clear double ended bulb. This item is made by Osram, and is commonly available from no other source but Osram/Sylvania, but as alternative part numbers 69237, XBO150W/CR, XBO150W/CROFR, XBO150W/CR-OFR and other variations.

This lamp replaces the Osram XBO 150W/1 OFR Osram 69235?á?á

Case quantity: 1

XBO lamps are short-arc lamps in which light is generated by a discharge arc burning in pure high pressure Xenon gas between two electrodes. XBO lamps have a very high colour rendering index and extremely high luminance. For this reason they are used for cinema film projection, high-end video projectors and in light guide systems, e.g. for endoscopy.

XENON Foot Notes?á

• DHP = Digital High Performance (Barco?áProjectors) Long Life Version
• DHS = Digital High Performance Short (Barco?áProjectors)
• DTP?á = Digital Threaded Pin (Christie?áProjectors)
• DTS?á = Digital Threaded Super Performance (Christie?áProjectors)
• HPN = High Performance?áNEC
• HPS?á = High Performance?áSony
• S?á = Short

• C?á = Base with Cable
• H?á = Suitable for horizontal operation
• OFR = Ozone Free
• s (Operating Position) = Vertical, base down
• p (Operating Position) = Horizontal
  This lamp has positive pressure even when cold. Please read safety/warning instructions before using this lamp.
  Distance a is from end of base to the respective electrode tip (cold) - see lamp drawing.
  With vertical operating position: anode( ) on top.
